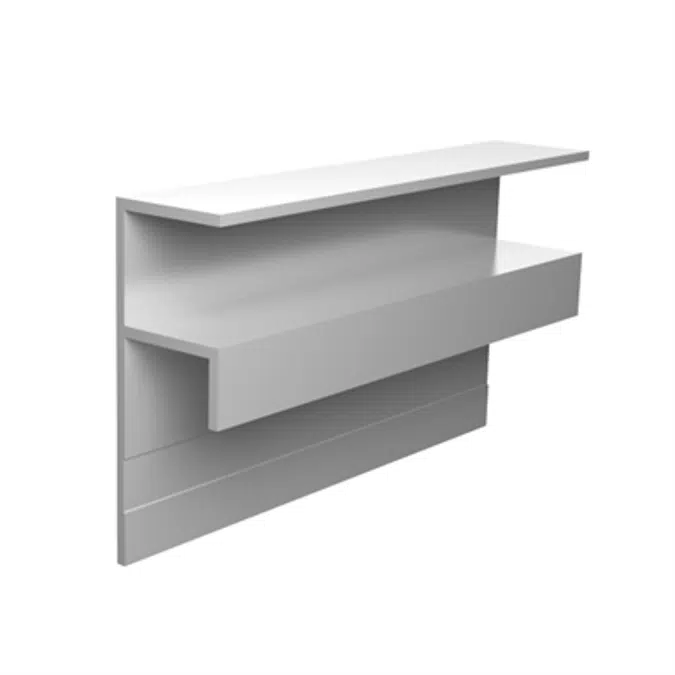

F Reveal Trim Profile for Horizontal Cladding Joints - FR

Provides a clean finish at openings, at the edge of various siding materials, and at material transtions while creating a reveal break. Complement the Vertical Reveal System.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® F Reveal on horizontal applications where the exterior flange can catch/hold water.

Specification

FR516
- A: 3/8”
- B: 3/8”
- C: 1/2”
FR716
- A: 3/8”
- B: 15/32”
- C: 1/2”
FR34
- A: 5/8”
- B: 3/4”
- C:3/4”
All parts are 10’ Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-041
Product familyExterior Cladding Trim Profiles
Product groupReveal, F‑Profile
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/style-f-reveal-trim/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/FR.pdf

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim
