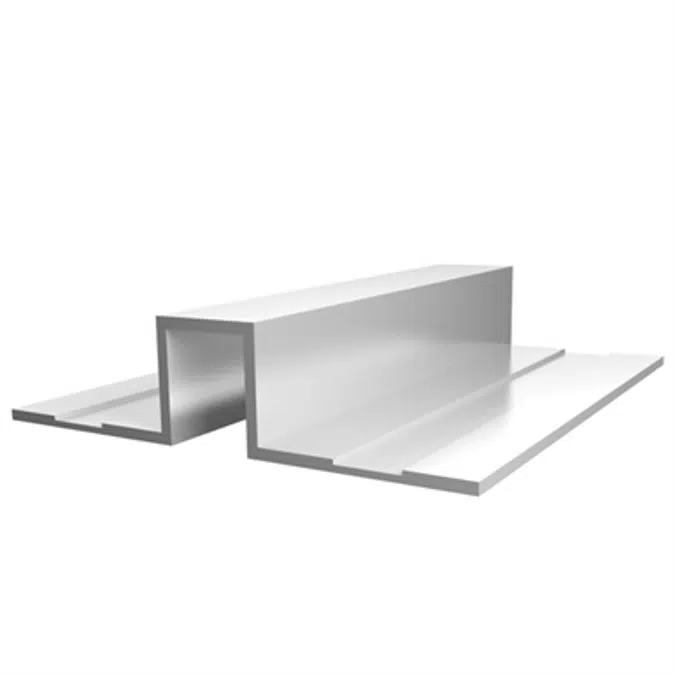

Vertical Box T-Mold Trim Profile for Cladding Transitions - TM28B

XtremeTrim® Vertical Box T-Mold serves as a broad, distinct expansion joint between panels. Works with all panel profiles/ finishes up to 7/16" thick.

MATERIAL
6063-T5 .045" ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISH
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).

NOTE
Use of the XtremeTrim® Vertical Box T-Mold at horizontal joints is not recommended.

Specification

ITEM ID
TM28B
- A: 7/16"
- B: 7/16"
- C: 2"
- Siding Size: 5/16"
All parts are 8' Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-010
Product familyExterior Cladding Trim Profiles
Product groupT‑Mold, Vertical, Box
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttp://www.xtremetrim.com/products-xtremetrim.php?i=8&s=Vertical%20Reveals
Technical descriptionhttps://tamlyn.com/XT/product_submittal/TM28B.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
