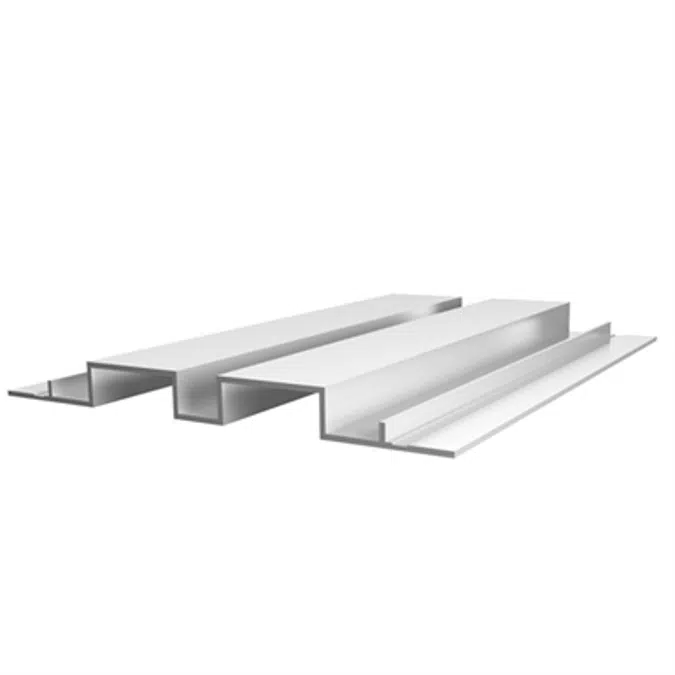

Vertical Batten Reveal Trim Profile for Exterior Cladding - RVBN

Unique design duplicates the look of a wood batten without the maintenance headaches while serving as a rustproof flashing between vertical siding. Design does not protrude beyond panel.

MATERIAL
6063-T5 .050" ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISH
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized and custom anodized are available (minimums apply).

NOTE
Use of the XtremeTrim® Vertical Batten Reveal at horizontal joints is not recommended.

Specification

ITEM ID:
RVBN516
- A: 15/32"
- B: 1/2"
- C: 5/16"
All parts are 10' Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-004
Product familyExterior Cladding Trim Profiles
Product groupReveal, Vertical, Batten
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttp://www.xtremetrim.com/products-xtremetrim.php?i=3&s=Vertical%20Reveals
Technical descriptionhttps://tamlyn.com/PDF/XT-catalog-pages/RVBN.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
