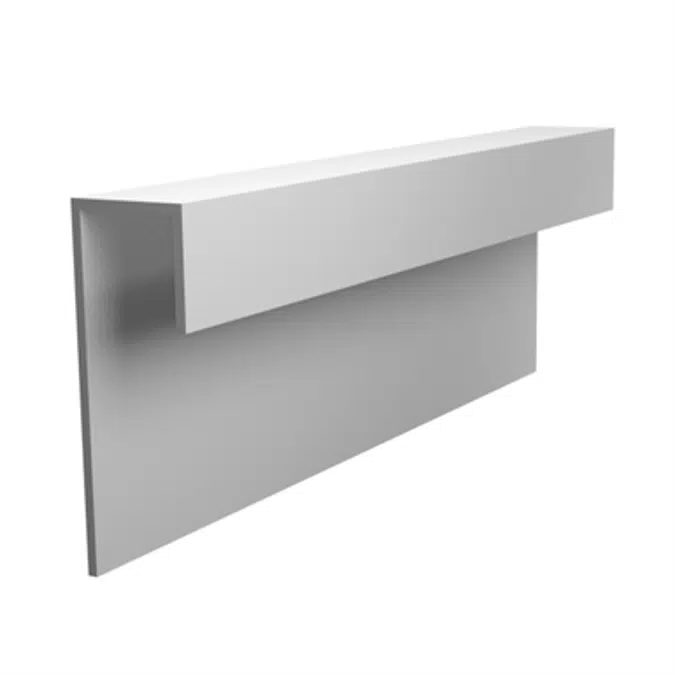

J-Mold Termination Trim Profile for Exterior Cladding - JMS

Provides a clean finish at openings, edges of panels and at material transitions. True size designed as an independent profile. Use as a closure/cap piece only.

MATERIALS: 6063-T5 .040″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® Basic J Mold on horizontal applications where the exterior flange can catch water.

Specification

ITEM ID:
JMS5168
- A: 3/8”
- B: 5/16”
- Length: 8”
JMS7168
- A: 3/8”
- B: 7/16”
- Length: 8”
JMS588
- A: 3/8”
- B: 5/8”
- Length: 8”

Technical specification

Unique ref.tamlyn-002
Product familyExterior Cladding Trim Profiles
Product groupJ‑Mold
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/basic-j-mold/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/JMS.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
