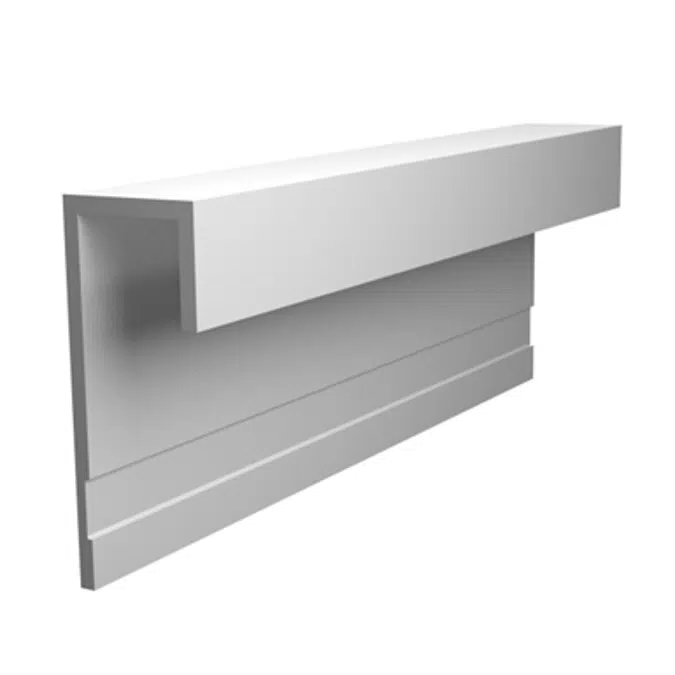

J-Mold Termination Trim Profile for Cladding Systems - JMH

Provides a clean finish at openings, edges of panels or planks and at material transitions. Specifically designed to work in conjunction with other XtremeTrim^® profiles.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® Standard J Mold horizontal applications where the exterior flange can catch/hold water.

Specification

ITEM ID:
JMH516*
- A: 3/8”
- B: 3/8”
JMH716
- A: 3/8”
- B: 15/32”
JMH58
- A: 1/2”
- B: 5/8”
JMH34*
- A: 5/8”
- B: 3/4”
JMH1
- A: 3/8”
- B: 1”
JMH114
- A: 3/8”
- B: 1-1/4”
JMH112
- A: 3/8”
- B: 1-1/2”
JMH2
- A: 1/2”
- B: 2”
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED

Technical specification

Unique ref.tamlyn-001
Product familyExterior Cladding Trim Profiles
Product groupJ‑Mold
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/standard-j-mold/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/JMH.pdf

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
