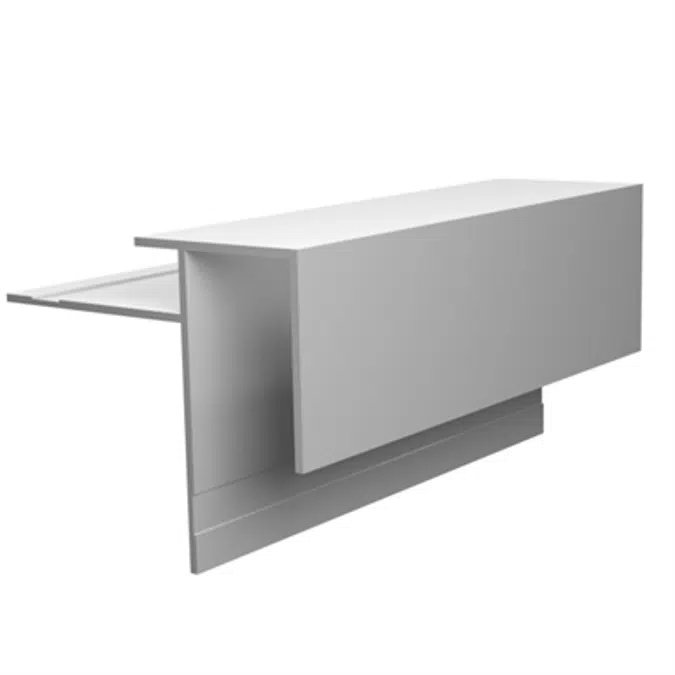

Transition Outside Corner Trim Profile (Low Profile) for Cladding - XOCLP

Offers a clean outside corner for various siding materials. Works well with all vertical options.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® Low Profile Outside Corner on horizontal applications where the exterior flange can catch/hold water.

Specification

ITEM ID:
XOCLP516*
- A: 3/4”
- B: 3/8”
XOCLP716
- A: 1”
- B: 7/16”
XOCLP58*
- A: 1-1/8”
- B: 5/8”
XOCLP34*
- A: 1-1/2”
- B: 3/4”
XOCLP1
- A: 1-1/2”
- B: 1”
XOCLP114
- A: 1-3/4”
- B: 1-1/4”
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED

Technical specification

Unique ref.tamlyn-039
Product familyExterior Cladding Trim Profiles
Product groupOutside Corner, Transition, Low Profile
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/low-profile-outside-corner/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XOCLP516.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
