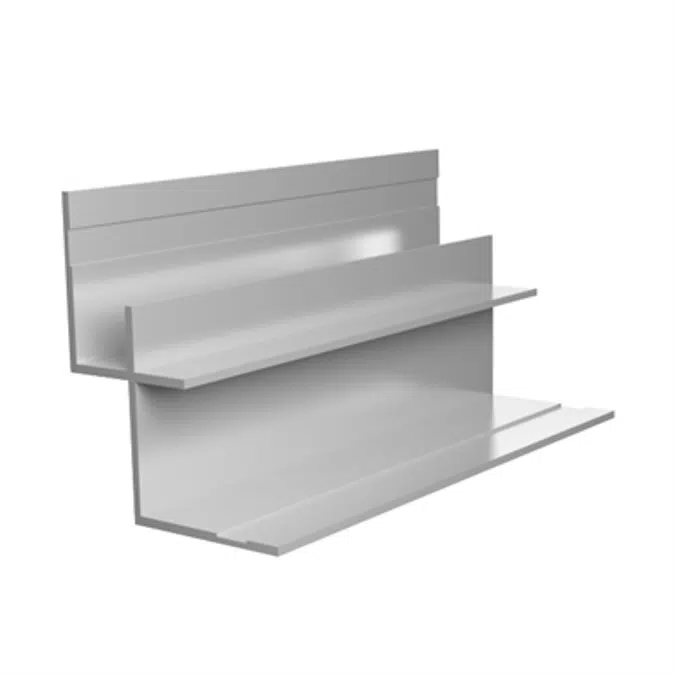

Transition Inside Corner Trim Profile (Low Profile) for Cladding - XICLP

Faces help to produce a clean and durable inside corner that complement many vertical and horizontal options.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

Specification

ITEM ID
XICLP51634
- A: 3/8”
- B: 5/8”
- C: 3/8”
- D: 3/4”
XICLP516112
- A: 3/8”
- B: 3/8”
- C: 3/8”
- D: 1-1/2"

Technical specification

Unique ref.tamlyn-037
Product familyExterior Cladding Trim Profiles
Product groupInside Corner, Transition, Low Profile
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/low-profile-inside-corner-transition/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XICLP51634.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
