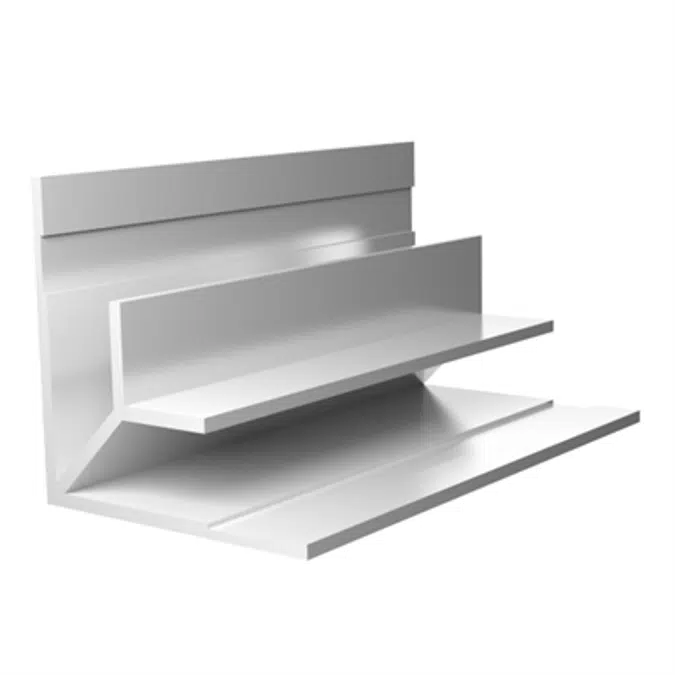

Low Profile Panel Inside Corner Trim Profile for Cladding - XICLP

Faces help to produce a clean and durable inside corner that complement many vertical and horizontal options.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

Specification

ITEM ID:
XICLP516*
- A: 3/8”
- Bl: 3/8”
XICLP716
- A: 3/8”
- B: 15/32”
'XICLP34*
- A: 5/8”
- B: 3/4”
XICLP1
- A: 7/16”
- B: 1”
XICLP114
- A: 1”
- B: 1-1/4”
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED

Technical specification

Unique ref.tamlyn-033
Product familyExterior Cladding Trim Profiles
Product groupInside Corner, Low Profile, Pane
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/low-profile-inside-corner-3/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XICLP.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
