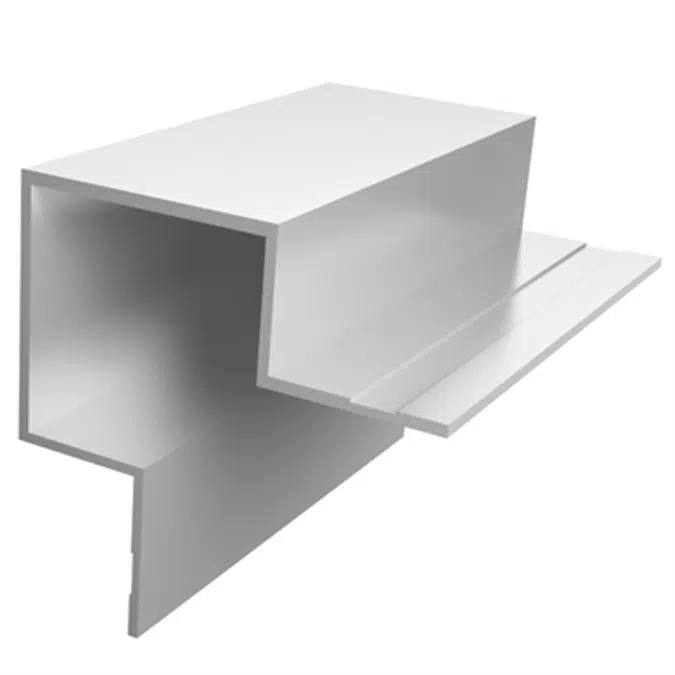

Butted Outside Corner Trim Profile for Siding and Cladding - XOCBT

Gives a solid appearance with the versatility to be used with mixed materials and any vertical and horizontal profiles.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® Butted Outside Corner on horizontal applications where the exterior flange can catch/hold water.

Specification

XOCBT
- A: 1-1/2”
- B: 3/4”
All parts are 10’ Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-026
Product familyExterior Cladding Trim Profiles
Product groupOutside Corner, Butted
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/butted-outside-corner/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XOCBT.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
