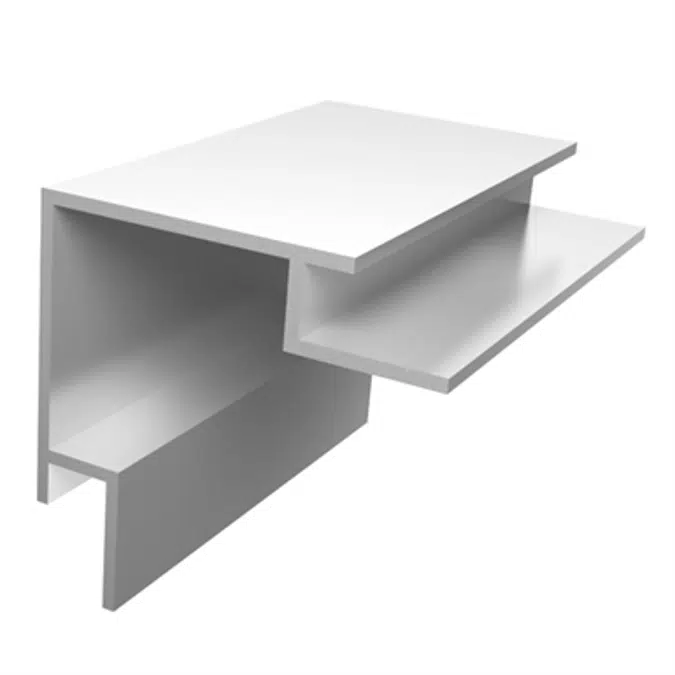

3-1/2" Outside Corner Trim Profile for Exterior Cladding - XOC

A traditional outside corner without the joints, caulked seams and nail holes that butted 1x4s require.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® 3-1/2″ Outside Corner on horizontal applications where the exterior flange can catch/hold water.

Specification

ITEM ID:
XOC12:
- A: 1"
- B: 2"
XOC35:
- A: 3-1/2”
- B:3/4”
All parts are 10’ Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-022
Product familyExterior Cladding Trim Profiles
Product groupOutside Corner
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/3-1-2-outside-corner/
Product certificationhttps://www.tamlyn.com/xtremetrimweb/PDF/MSDSExemptionForAluminumProducts.pdf
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XOC.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
