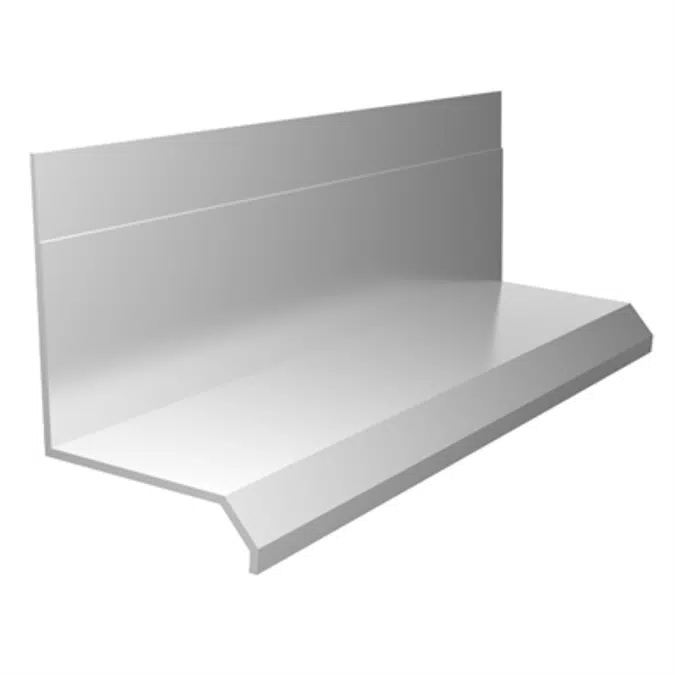

Window Flashing Profile for Exterior Openings - XWF

Provides an easy to install and long-lasting method of minimizing water penetration. Used over window trim, band boards, panel intersections, and material transitions.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim^® Window Flashing on horizontal applications where the exterior flange can catch water.

Specification

ITEM ID:
XWF78
- A: 1-1/4”
- B: 7/8”
XWF114
- A: 1-3/4”
- B: 1-1/4”
XWF112
- A: 1-1/4”
- B: 1-1/2”
XWF158
- A: 1-1/4”
- B: 1-5/8”
XWF2
- A: 2”
- B: 2”
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED

Technical specification

Unique ref.tamlyn-021
Product familyWindow & Opening Flashing Systems
Product groupWindow Flashing
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/window-head-flashing/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/XWF.pdf

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
