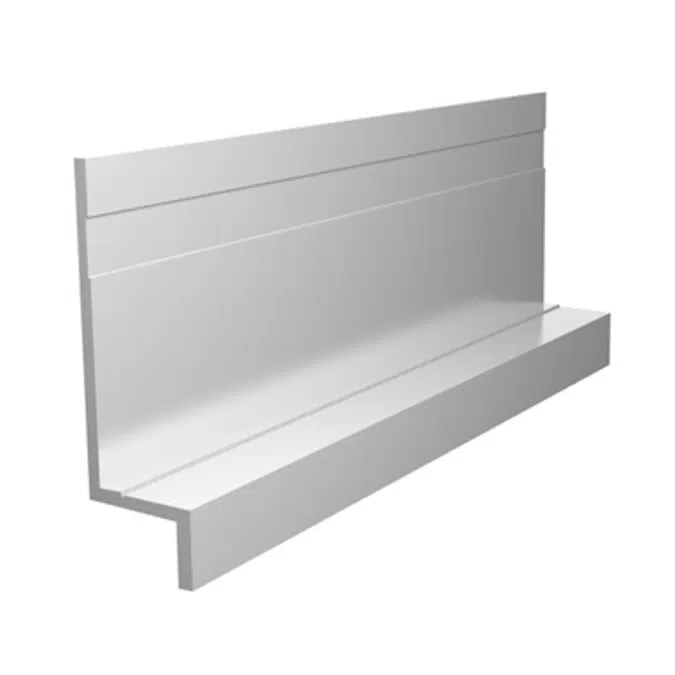

3 - 4 times thicker than any galvanized Z Bar holds true and straight to project quality, will not bow/wobble. Same thickness as other XtremeTrim® extruded aluminum reveals to harmonize aesthetically. Provides clean and consistent horizontal transition between panels. Designed to work in conjunction with XtremeTrim® Vertical Reveal and Siding H-Mold.
XZH5163 – Design affords greater reveal flexibility up to 2-1/2″ while working in conjunction with Vertical Reveal and Siding H-Mold.
MATERIALS:
6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES:
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized and custom anodized are available (minimums apply).
NOTE: Do not install XtremeTrim® Horizontal Z on horizontal applications where the exterior flange can catch water.
