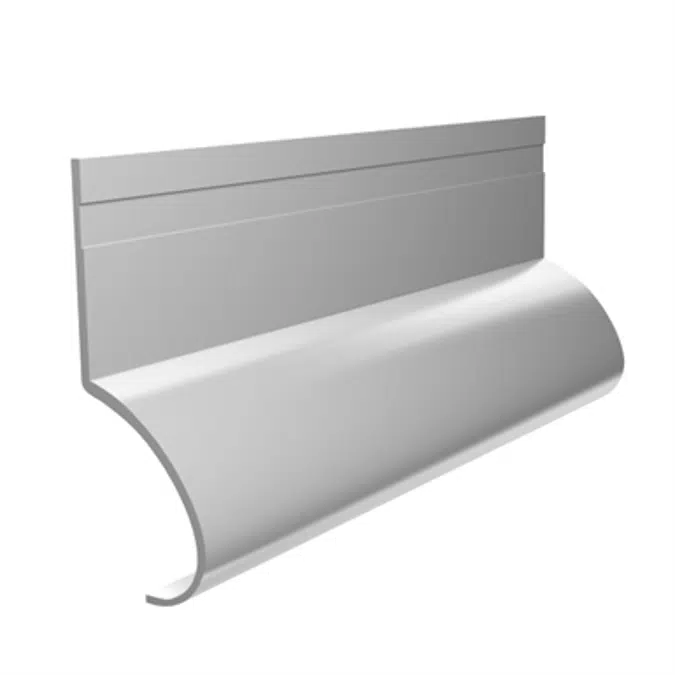

3 - 4 times thicker than any galvanized Z Bar holds true and straight to project quality, will not bow/wobble. Same thickness as other XtremeTrim® extruded aluminum reveals to harmonize aesthetically. Unique design gives a dramatic curved horizontal accent.
Unique design gives a dramatic curved horizontal accent that is uniquely modern, but recalls traditional wood profiles.
MATERIAL
6063-T5 .045" ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISH
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).
NOTE
Do not install XtremeTrim® Horizontal Z on horizontal applications where the exterior flange can catch water.
Region availability
| North America |
|---|
Canada |
United States |
