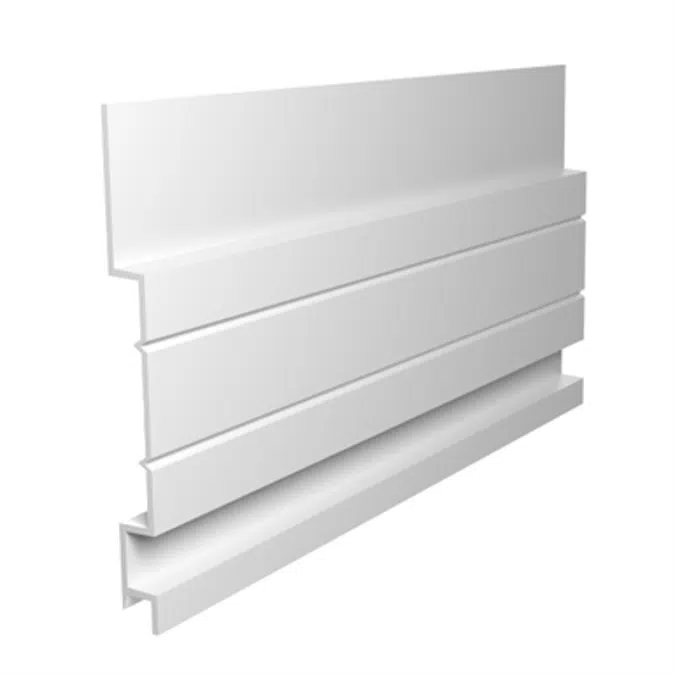

Horizontal Board Reveal Trim Profile (Grooved) for Cladding - RHBG

Design creates a broad horizontal accent within the plane of the wall without protruding beyond. Patented retention leg on back prevents flexing with expansion.

MATERIAL
6063-T5 .050" ± .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISH
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).

NOTE
Do not install XtremeTrim® Horizontal Reveal on horizontal applications where the exterior flange can catch water.

Specification

RHB516:
- A: 3/8"
- B: 1/2"
- C: 2-1/4"
- D: 15/32"
- SIDING SIZE: 5/16"
RHBG516:
- A: 3/8"
- B: 1/2"
- C: 2-1/4"
- D: 15/32"
- SIDING SIZE: 5/16"
All parts are 10' Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-014
Product familyExterior Cladding Trim Profiles
Product groupReveal, Horizontal, Board, Grooved
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttp://www.xtremetrim.com/products-xtremetrim.php?i=7&s=XtremeTrim%20Horizontal%20Reveal

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
