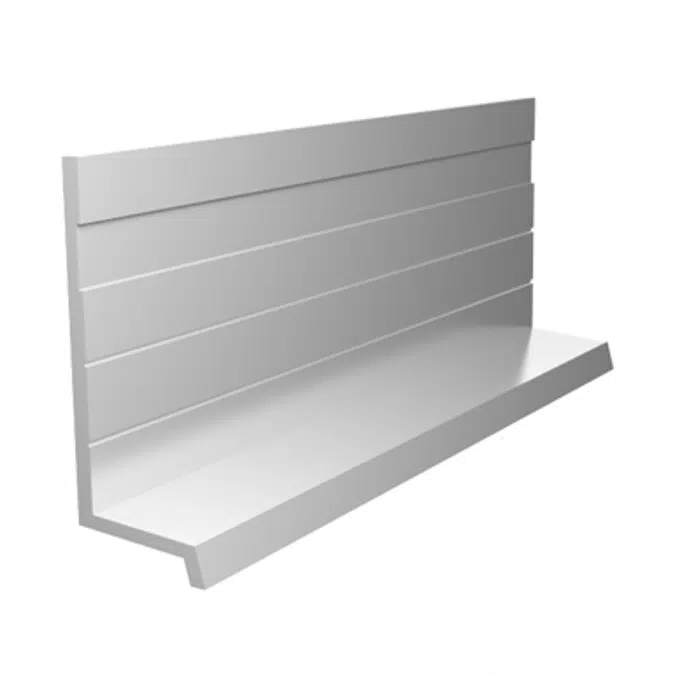

Horizontal Bead Reveal Trim Profile for Cladding Systems - BRH

Designed to work as part of a system with Vertical Bead Reveal. XtremeTrim^® Horizontal Bead Reveal provides a minimal exposure while providing protection for the top edge of the lower panel.

MATERIALS: 6063-T5 .040″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Do not install XtremeTrim® Horizontal Bead Reveal on horizontal applications where the exterior flange can catch/hold water.

Specification

BRH516*
- A: 1/8”
- B: 3/8”
- C: 1-1/8”
BRH716
- A: 1/8”
- B: 1/2”
- C: 1-1/8”
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED

Technical specification

Unique ref.tamlyn-012
Product familyExterior Cladding Trim Profiles
Product groupReveal, Horizontal, Bead
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/horizontal-bead-reveal/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/BRH.pdf

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
