Vertical Reveal Trim Profile for Cladding Systems - RV

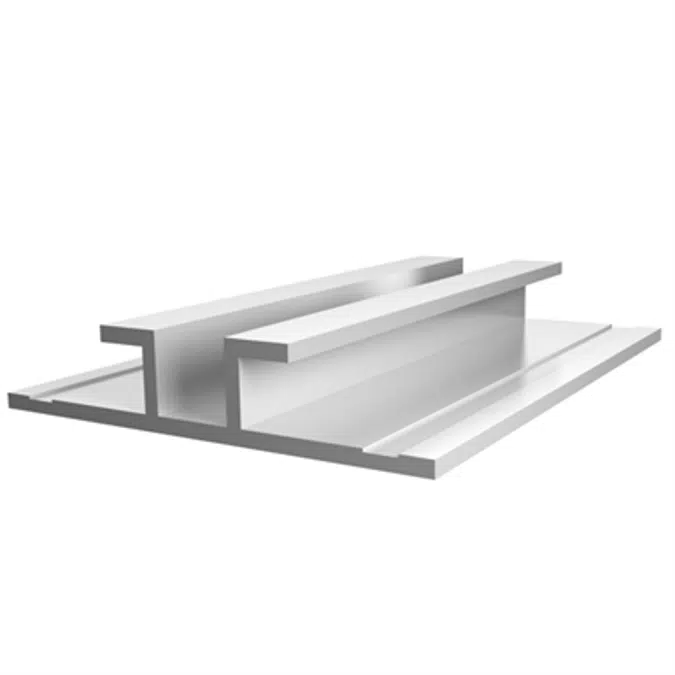

Creates a minimalist shadow line with simple reveal space that allows installation vertically, horizontally or diagonally. Can be used in conjunction with 5/8” drywall, panel installation and wrapped surface finishes such as fabric or vinyl wall coverings. Ridged faces for tape & float and pre-punched holes for easy install (hole placement may vary).

Available in 10’ length. 6063 T5 aluminum with standard clear anodized or primed finish. Anodized color and powder coating finishes available with custom color matching.

Specification

ITEM ID
RV-14
- A: 1/4”
- B: 1/4”
RV5-12
- A: 1/2"
- B:1/2"
RV5-100
- A: 1"
- B: 1/2"
RV5-200
- A: 2"
- B: 1/2"

Technical specification

Unique ref.tamlyn-011
Product familyExterior Cladding Trim Profiles
Product groupReveal, Vertical
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/reveal/
Technical descriptionhttps://www.tamlyn.com/PDF/XtremeInterior-catalog-pages/RV.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
