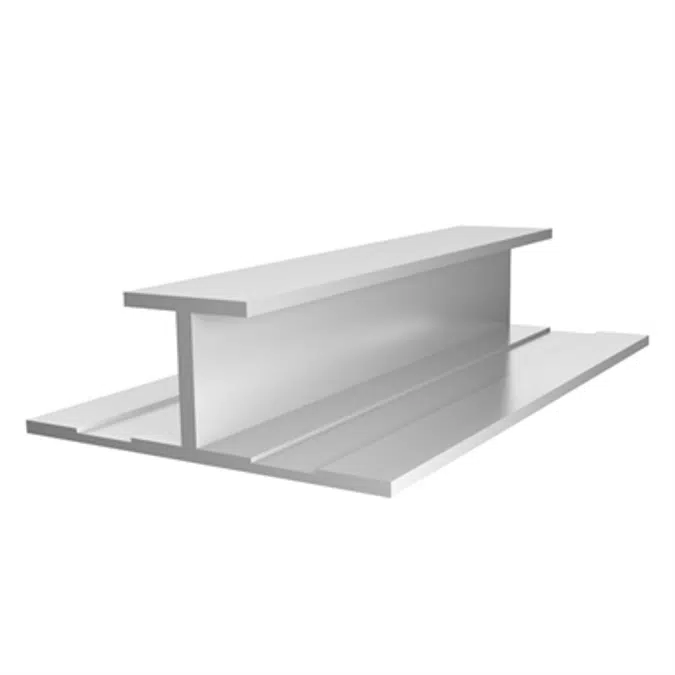

Vertical Sliding H-Mold Trim Profile for Panel Joints - SHM

Designed to cover vertical joints in siding. Provides a smooth seam.

MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

NOTE: Use of the XtremeTrim^® Do not install XtremeTrim® Vertical Siding H Mold on horizontal applications where the exterior flange can catch/hold water.

Specification

ITEM ID
SHM516
- A: 1/2”
- B: 3/8”
SHM716
- A: 3/4”
- B: 7/16”
SHM58
- A: 3/4”
- B: 5/8”
SHM34
- A: 3/4”
- B: 3/4”
SHM1
- A: 1”
- B: 1”
SHM114
- A: 1-1/4”
- B: 1-1/4”
All parts are 10’ Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-008
Product familyExterior Cladding Trim Profiles
Product groupH‑Mold, Vertical
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/vertical-siding-h-mold/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/SHM.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
