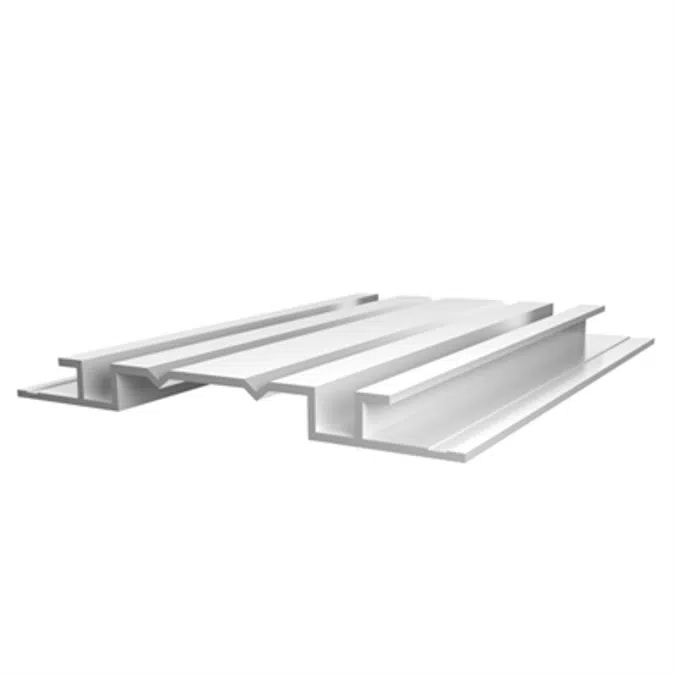

Vertical Board Reveal Trim Profile (Grooved) for Cladding - RVBG

Design creates a broad vertical accent between siding panels while not protruding beyond the plane of the facade.

Specification

ITEM ID SIDING SIZE
RVB516
5/16"
5/16"
3/8"
3/8"

RVBG516
1/2"
1/2"
"A"
3/8"
3/8"
"B" "D"
2-1/4"
2-1/4"
"C"

Technical specification

Unique ref.tamlyn-007
Product familyExterior Cladding Trim Profiles
Product groupReveal, Vertical, Board, Grooved
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttp://www.xtremetrim.com/products-xtremetrim.php?i=2&s=Vertical%20Reveals
Technical descriptionhttp://www.tamlyn.com/dev/PDF/XT-catalog-pages/RVB.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States

Similar products

Tamlyn Vertical Sliding H-Mold Trim Profile for Panel Joints - SHM

Tamlyn 3-1/2" Outside Corner Trim Profile for Exterior Cladding - XOC

Tamlyn J-Mold Termination Trim Profile for Exterior Cladding - JMS

Tamlyn Vertical Reveal Trim Profile for Cladding Systems - RV

Tamlyn Blunt Panel Outside Corner Trim Profile for Cladding - XOCBL

Tamlyn Bullnose Outside Corner Trim Profile for Exterior Cladding - XOCB
