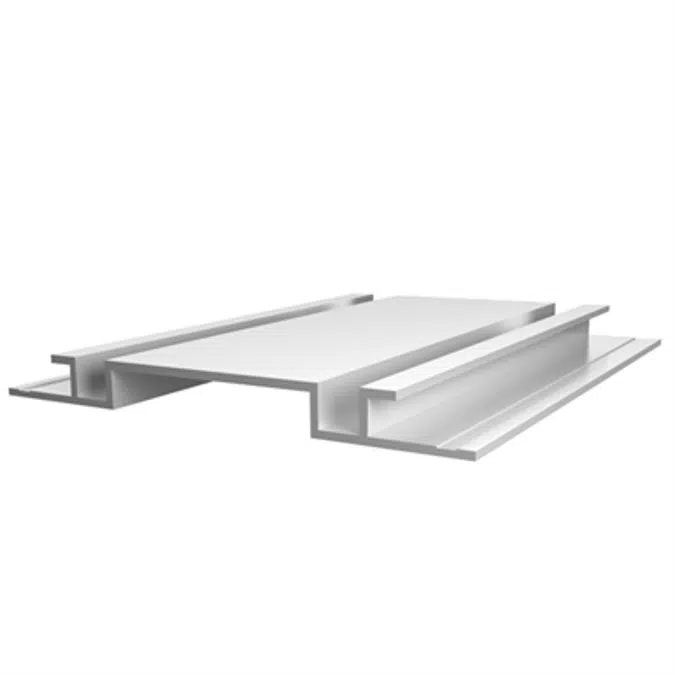

Vertical Board Reveal Trim Profile for Exterior Cladding - RVB

Design creates a broad vertical accent between siding panels while not protruding beyond the plane of the facade.

MATERIAL
6063-T5 .050" ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISH
Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).

NOTE
Use of the XtremeTrim® Vertical Board Reveal at horizontal joints is not recommended.

Specification

ITEM ID:
RVB516:
- A: 3/8"
- B:1/2"
- C: 2-1/4"
- D: 3/8"
- Siding Size: 5/16"
RVBG516:
- A: 3/8"
- B: 1/2"
- C: 2-1/4"
- D: 3/8"
- Siding Size: 5/16"

Technical specification

Unique ref.tamlyn-006
Product familyExterior Cladding Trim Profiles
Product groupReveal, Vertical, Board
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttp://www.xtremetrim.com/products-xtremetrim.php?i=2&s=Vertical%20Reveals
Technical descriptionhttps://tamlyn.com/PDF/XT-catalog-pages/RVB.pdf

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
