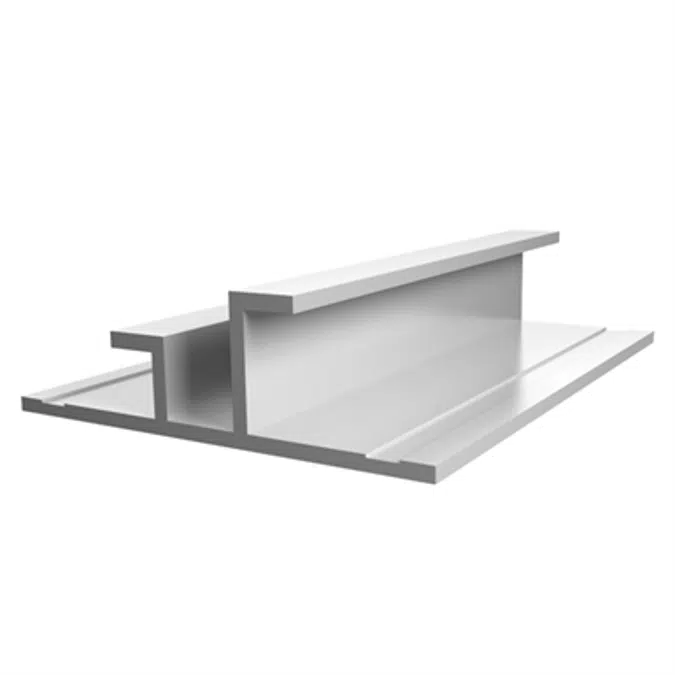

Vertical Transition Reveal Trim Profile for Cladding Systems - RVT

Designed to create a uniform, aesthetically consistent vertical reveal at transitions between panel and lap siding.

MATERIALS: 6063-T5 .050″ ± .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.

FINISHES: Unless specified all XtremeTrim^® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).

NOTE: Do not install XtremeTrim® Transition Vertical Reveal on horizontal applications where the exterior flange can catch/hold water.

Specification

ITEM ID:
RVT51634
- A: 3/8”
- B: 3/4”
- C: 1/2”
All parts are 10’ Length unless otherwise indicated

Technical specification

Unique ref.tamlyn-003
Product familyExterior Cladding Trim Profiles
Product groupReveal, Vertical, Transition
TypeObject (single object)
Date of publishing2016-03-29
Edition number1

Links

Product urlhttps://tamlyn.com/product/vertical-reveal-transition/
Technical descriptionhttps://www.tamlyn.com/PDF/XT-catalog-pages/RVT.pdf

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryWalls - Curtain Walls
Uniclass 2015 CodePr_35_90_28_52
Uniclass 2015 DescriptionMetal finishing trims
OmniClass Number23-15 15 31
OmniClass TitleWall Specialties and Trim

Region availability

North America
Canada
United States
