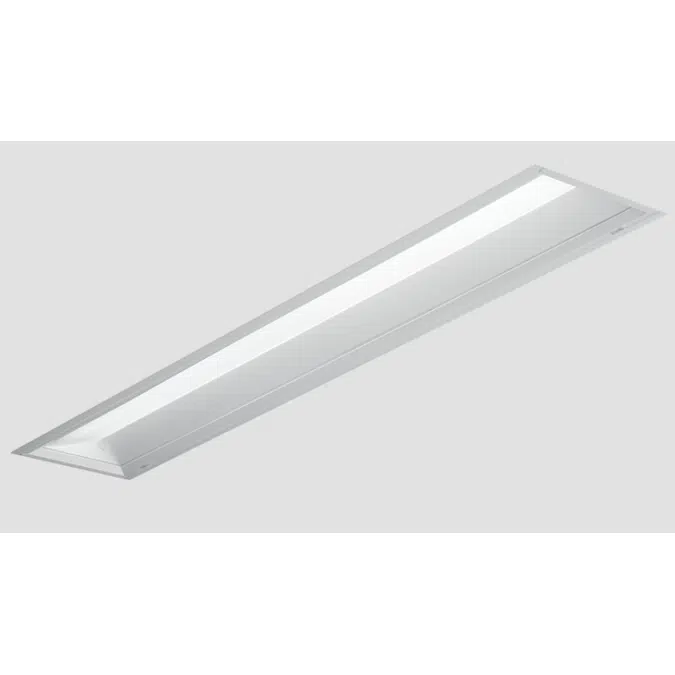

MD4 Dual Function Medical Bed Light

MD4 Dual Function Medical Bed Light

Features

  • Specify as a single fixture or in pairs to customize ambient, exam, and reading light output
  • Illuminate exam surfaces asymmetrically when installed in pairs and meet IESNA guidelines
  • Smooth, calming ambient lighting enhances patient comfort
  • Fixtures can be installed to allow maintenance access without working directly over patient beds
  • Optional low-voltage controller allows for bedside lighting control
  • Double-gasketed sani-shield protects fixture from dust, bugs and other contaminants while simplifying maintenance and cleaning
  • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • High-performance up to 112 lm/W
  • Optional low-voltage controller wall plate accessories provide easy access for healthcare personnel
  • Optional tamper-resistant screws secure door frame
  • Optional triple gasket protects against contaminant ingress
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Build America, Buy America and Buy American Act compliant
  • Made Right Here® in the USA
Specification
  • Housing

    20-gauge die-formed and welded C.R.S.

    Door Frame

    .050″ extruded regressed aluminum frame with curved diffuse acrylic lens and clear acrylic sani-shield. Fully enclosed spring-loaded cam latches.

    Shielding

    Internal curved diffuse ribbed acrylic with external clear, non-prismatic sani-shield lens.

    Finish

    92% minimum average reflective white anti-microbial powder coat, bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED board. Rated for 50,000 hours at 70% lumen maintenance (L70). 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.

    Mounting

    NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately. Fixture must be installed prior to Drywall Kit.

    Listings

    • cCSAus certified as luminaire suitable for dry or damp locations.
    • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
    Request certification at hew.com/buy-american.

    Warranty

    5-year limited warranty, see details
Technical specification
  • Unique ref.md4-dual-function-medical-bed-light
  • TypeObject (single object)
  • Date of publishing2025-06-18
  • Edition number1
Related
  • Material mainMetal
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
