LT TROFFER

FEATURES

Available on QuickShip
Low-profile depth for shallow plenum applications
Diffuse lens provides smooth illumination for visual comfort

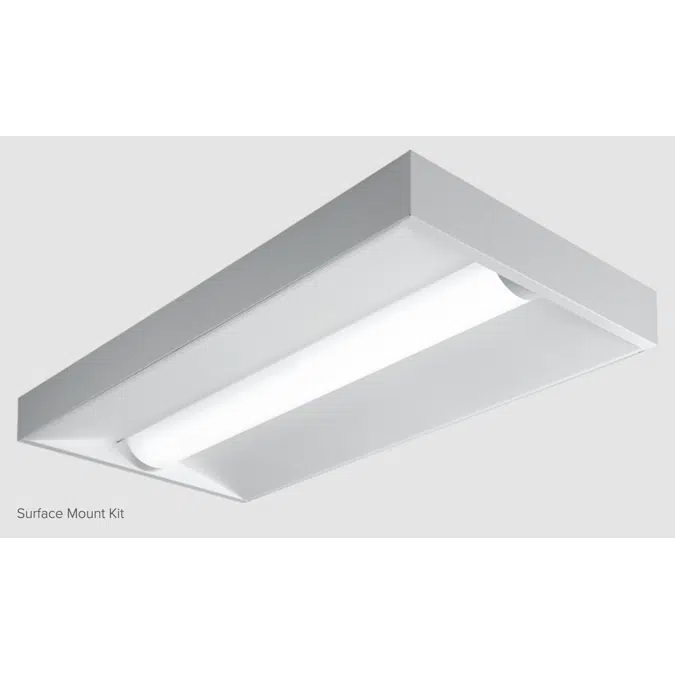

Surface mount kit preserves continuity
High-performance up to 140 lm/W

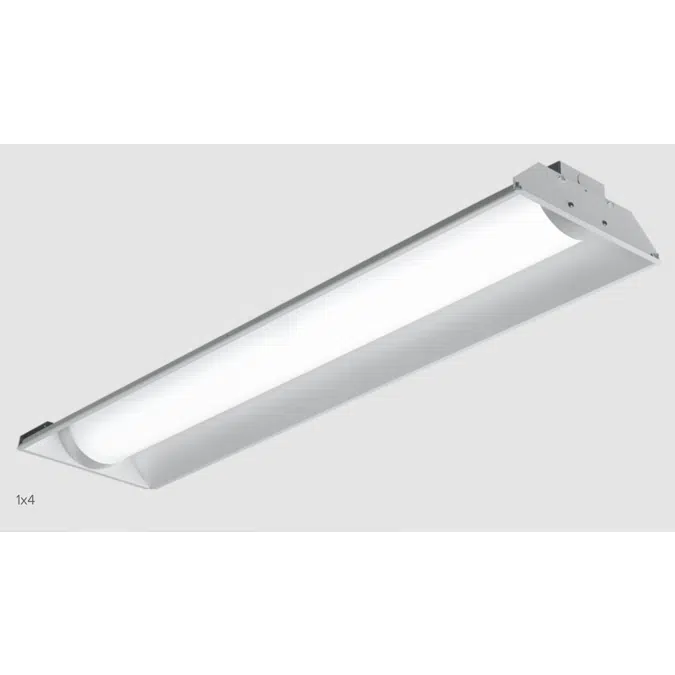

1x4, 2x2, and 2x4 sizes available
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
Rated for direct contact with insulation
ISO 5-9 and IP5X rated for cleanroom applications
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
Support human-centric design with adaptive, individualized lighting using tunable white light
DLC Compliant
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Specification

Housing/Reflector	Precision die-formed 22-gauge C.R.S.
Shielding	Frosted acrylic.
Finish	Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L80 >60,000 hours.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Surface mount and drywall flange kits available, shipped separately.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • IC-rated for direct contact with insulation. • IP5X rated. • ISO 5-9 rated. • City of Chicago Environmental Air approved when specified with CP option. • DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
