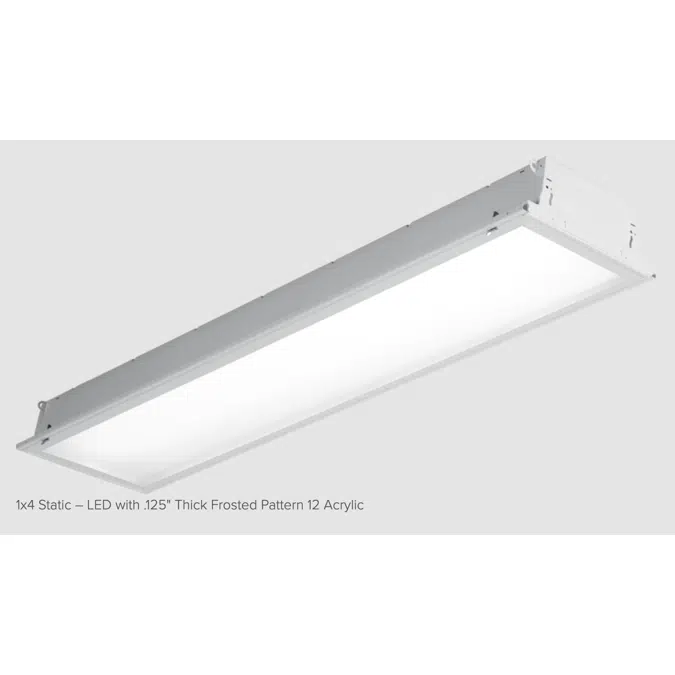

50 STATIC TROFFER
50 STATIC TROFFER
50 STATIC TROFFER
    H.E. Williams, Inc.

    50 STATIC TROFFER

    FEATURES

    • Frosted prismatic lens provides pleasing diffused light without LED pixelation
    • Fully-enclosed spring-loaded cam latches provide hassle-free room-side maintenance
    • Triple gasketing and inverted lens options for smooth surface room-side
    • T-slot steel hinge ensures positive retention when door is opened
    • Back reinforcement ribs and rolled-edge channel adds superior strength
    • Integral T-bar clips quickly secure fixture to structure (2x2 and 2x4 only)
    • High-performance up to 139 lm/W
    • Rated for direct contact with insulation
    • Fully gasketed door protects against contaminants
    • Optional tamper-resistant screws secure door frame
    • Variety of door frame and shielding options
    • Listed for wet location under covered ceiling option
    • Double and triple gasketing options
    • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
    • 1x4, 2x2, and 2x4 sizes available
    • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
    • Buy American Act compliant
    • Wireless in-fixture control solutions available
    • Made Right Here® in the USA
    Specification

    • Housing

      22-gauge die-formed C.R.S.

      Door Frame

      20-gauge C.R.S. or.050″ extruded aluminum, flat or regress, with mitered corners. T-slot steel hinge allows reversible hinging and latching. Fully enclosed spring-loaded cam latches.

      Shielding

      Frosted acrylic, pattern #12, .125″ thick.

      Finish

      92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

      Electrical

      High-quality mid-power LED board. 25°C maximum ambient operating temperature.

      Mounting

      NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange type available.

      Listings

      		• cCSAus certified as luminaire suitable for dry or damp locations.
      • IC-rated for direct contact with insulation.
      • City of Chicago Environmental Air approved when specified with CP option.
      • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

      Warranty

      		5-year limited warranty, see details
    Technical specification
    • Unique ref.50-statictroffer
    • Product familyIndoor Luminaires
    • Product groupTroffers
    • TypeObject (single object)
    • Date of publishing2026-02-27
    • Edition number1
    Links
    Related
    • Material mainMetal
    • Material secondaryGlass
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryLighting - Ceiling Mounted
    • IFC classificationLight Fixture
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 51 13
    • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
