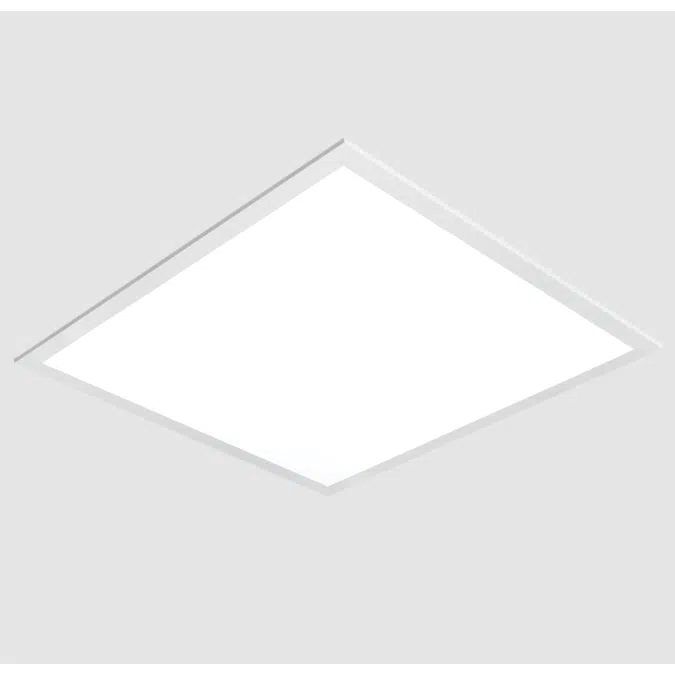

BP BACKLIT FLAT PANEL

FEATURES

Available on QuickShip
Easily change the color temperature and lumen output on-site with built-in FieldSELECT™ switches, providing ultimate flexibility
Surface mount kit provides design continuity where ceiling access is restricted
Skylight kit creates architectural design aesthetic

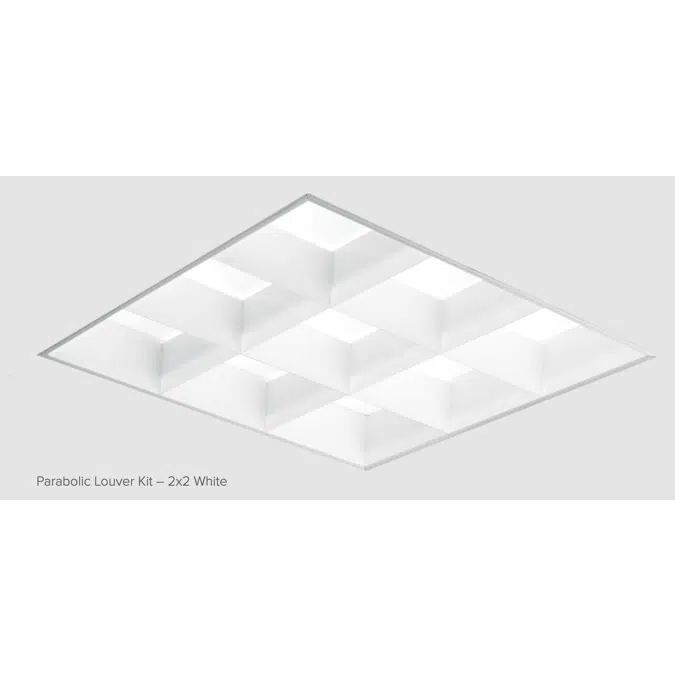

Parabolic louver kit provides classic styling detail with modern performance specifications
Backlit LED technology provides efficient and uniform lighting
Simple and quick installation
Seamless design prevents light leak
Rigid back enclosure prevents warping
PMMA lens minimizes the risk of yellowing from UV exposure
Shipped in 4-packs to reduce job-site waste
Optional factory-installed battery backup provides 90 minutes of emergency illumination
Rated for direct contact with insulation
Low UGR meets LEED and WELL requirements
DLC Compliant

Specification

Housing	Aluminum frame with steel die-formed back enclosure.
Optics	Backlit PMMA lenses with PS diffuser.
Finish	Non-glare matte white polyester powder coat. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. L90 >54,000 hours. 25ºC max ambient operating temperature.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. Factory-installed earthquake clips provided for NEMA Type “NFG” and “SG” 9/16” grid installations. Skylight, surface mount, parabolic louver, and drywall kit options available, shipped separately.
Listings	• cULus listed as LED luminaire suitable for dry or damp locations. • IC-rated for direct contact with insulation. • DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
Warranty	5-year limited warranty, see details
