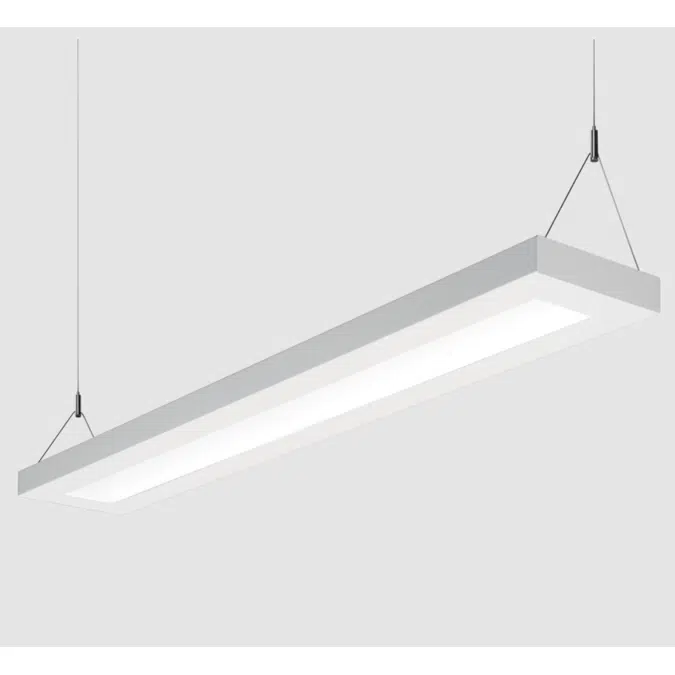

SDI5 SUSPENDED DIRECT/INDIRECT

SDI5 SUSPENDED DIRECT/INDIRECT

FEATURES

  • Timeless architectural design blends seamlessly into the space
  • Seven distributions for precision illumination
  • Stand-alone and continuous row mounting
  • Spacing ratio up to 2.4 evenly illuminates the environment with fewer luminaires
  • High-performance up to 148 lm/W
  • Self-aligning joining method ensures straight, continuous rows
  • Diffuse lens or white louver shielding options
  • 4' and 8' lengths available
  • Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
  • Quickly lay out projects and simplify ordering with our Linear Product Builder
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Available with BIOS® state-of-the-art LED white light circadian solutions
  • Made Right Here® in the USA
Specification
  • Housing

    20-gauge die-formed C.R.S. spot welded construction.

    End Caps

    16-gauge C.R.S. with spot welded inner light stop, fastened with hidden machine screw fastener.

    Shieldiing

    Diffuse acrylic or louver downlight options with clear acrylic uplight lens.

    Reflective Surfaces

    92% minimum average reflective white polyester powder coat on interior components.

    Finish

    Textured matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED boards. L70 > 50,000 hours.

    Mounting

    Suspended. 1/16″ diameter adjustable steel leveling aircraft cable with two-point “Y” connector and mounting hardware provided. Fixtures join using (2) 8-32 machine screws and hex nuts.

    Listings

    • cCSAus certified as luminaire suitable for dry or damp locations.
    • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

    Warranty

    5-year limited warranty, see details
Technical specification
  • Unique ref.sd15-suspendeddirectindirect
  • Product familyIndoor Luminaires
  • Product groupSuspended
  • TypeObject (single object)
  • Date of publishing2026-02-27
  • Edition number1
Related
  • Material mainMetal
  • Material secondaryGlass
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
