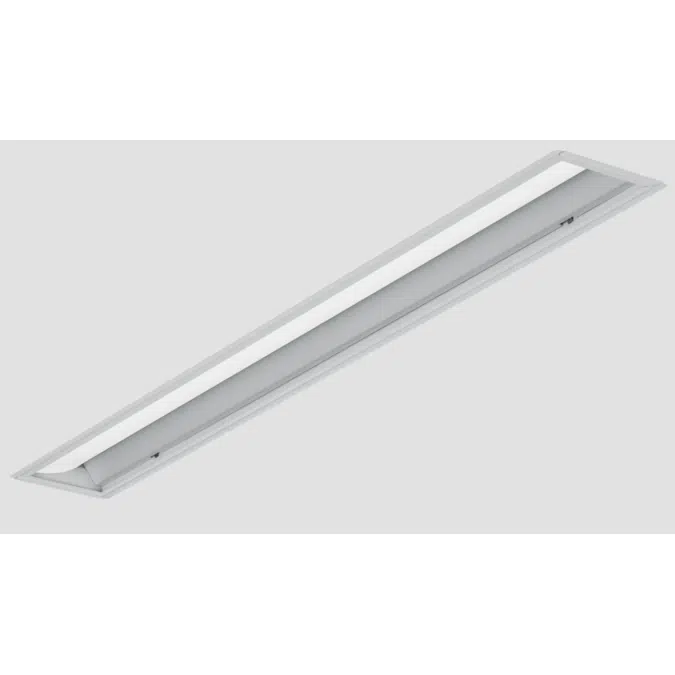

MD2 Asymmetric Medical Bed Light
MD2 Asymmetric Medical Bed Light

    MD2 Asymmetric Medical Bed Light

    Features

    • Designed for use in pairs to asymmetrically illuminate patient beds
    • Fixtures can be installed to allow maintenance access without working directly over patient beds
    • Optional low-voltage controller allows for bedside lighting control
    • Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
    • Multiple dimming protocols available
    • Provides varying levels of illumination through dimming driver
    • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
    • Optional low-voltage controller wall plate accessories provide easy access for healthcare personnel
    • High-performance up to 106 lm/W
    • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
    • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
    • Support human-centric design with adaptive, individualized lighting using tunable white light
    • Build America, Buy America and Buy American Act compliant
    • Made Right Here® in the USA


    Specification
    • Housing

      22-gauge die-formed C.R.S.

      Door Frame

      Steel door frame with integral torsion springs to secure the frame within the fixture.

      Shielding

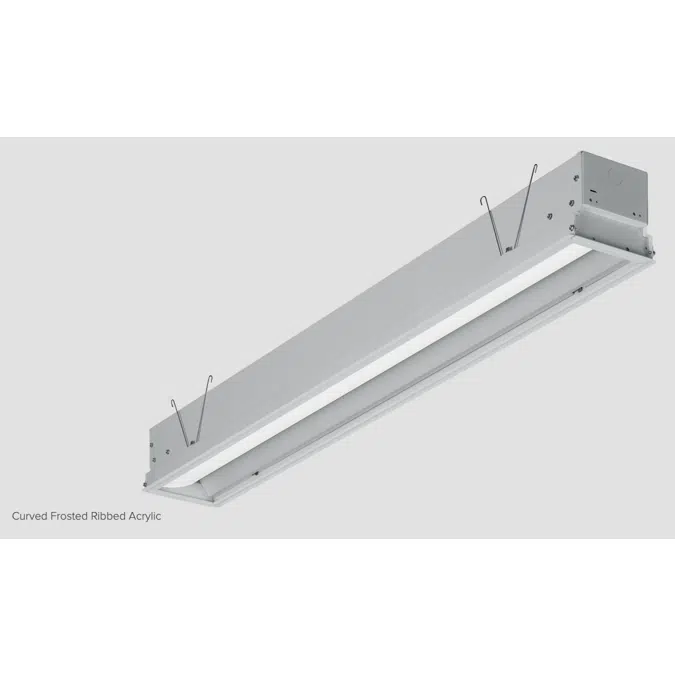

      Frosted, ribbed acrylic.

      Finish

      Textured 92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

      Electrical

      High-quality mid-power LED board. Rated for 50,000 hours at 70% lumen maintenance (L70). 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.

      Mounting

      NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall flange kit available, shipped separately. Fixture must be installed prior to Drywall Kit.

      Listings

      • cCSAus certified as luminaire suitable for dry or damp locations.
      • Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
      Request certification at hew.com/buy-american.

      Warranty

      5-year limited warranty, see details
    Technical specification
    • Unique ref.md2-asymmetric-medical-bed-light
    • TypeObject (single object)
    • Date of publishing2025-06-18
    • Edition number1
    Related
    • Material mainMetal
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryLighting - Ceiling Mounted
    • IFC classificationLight Fixture
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 51 13
    • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
