MCT MEDICAL CLEAN ROOM TROFFER

FEATURES

IP65 and ISO 5, Class 100 rated to meet demanding environments
NSF/ANSI 2 certified for splash and non-food zone settings
Closed cell foam, NSF approved gasket between housing and ceiling
Seam-welded fixture housing and doorframe are designed for infection controlled environments
Smooth surface doorframe and lens materials simplify cleaning and maintenance
Optional MIL-STD-461G complies with radiated and conducted emission regulations
Anti-microbial finish suppresses the spread of dangerous micro-organisms, mold, and bacterial growth
High-performance up to 132 lm/W
Optional tamper-resistant screws secure door frame
Rated for direct contact with insulation

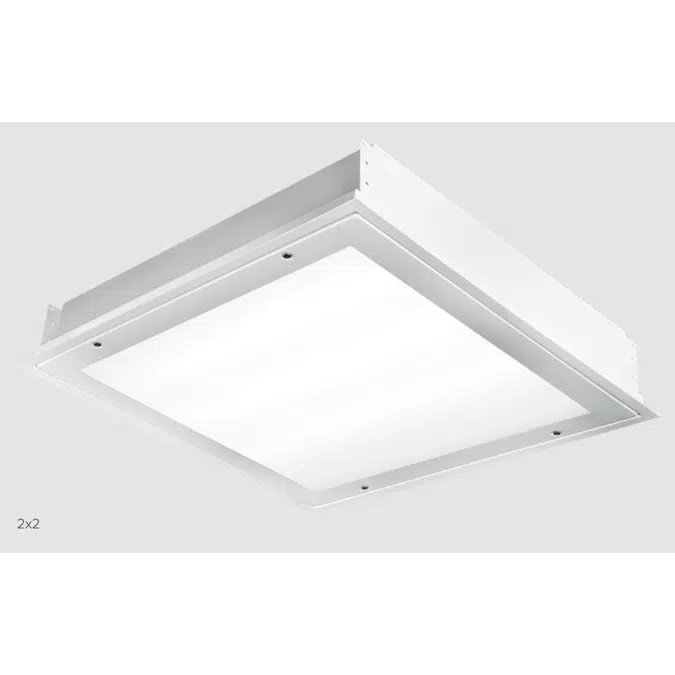

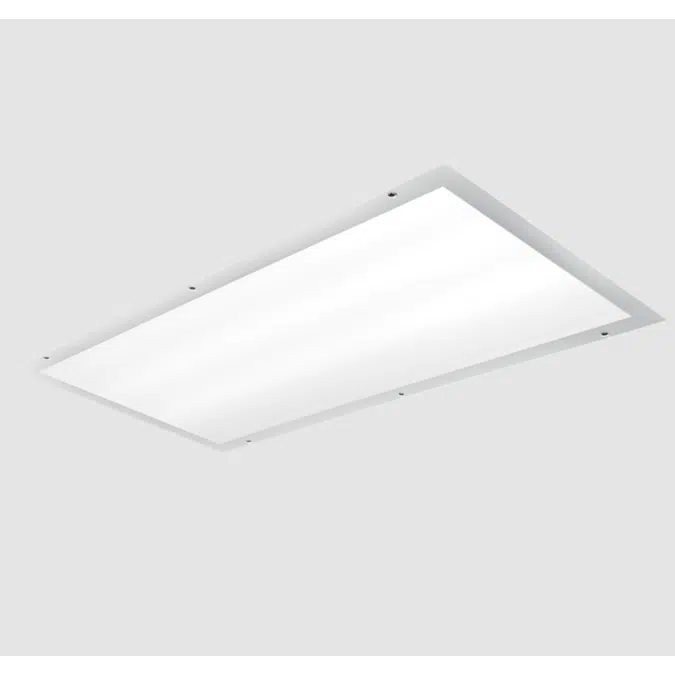

1x4, 2x2, and 2x4 sizes available
Optional triple gasket protects against contaminant ingress
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Buy American Act compliant
Available with BIOS^® state-of-the-art LED white light circadian solutions
Made Right Here^® in the USA

Specification

Housing	20-gauge die-formed, seam-welded C.R.S. Aluminum and stainless steel options available.
Door Frame	One-piece 20-gauge seam-welded C.R.S. Secured from one side with stainless steel safety cables. Attached to fixture using captive, stainless steel screws.
Shielding	Choice of frosted lens with smooth clear acrylic or polycarbonate underlay.
Finish	92% minimum average reflective white anti-microbial powder coating bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70).
Mounting	NEMA Type “G” 15/16″ or 1-1/2″ grid standard. Drywall flange type available.
Listings	• cCSAus certified as luminaire suitable for wet location under covered ceiling. • IC-rated for direct contact with insulation, lumen restrictions apply. • IP65 rated • ISO 5, Class 100 rated • NSF/ANSI 2 • Complies with MIL-STD-461G with DIM or DRV drivers. • City of Chicago Environmental Air approved (not available when specified with NSWH) • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
