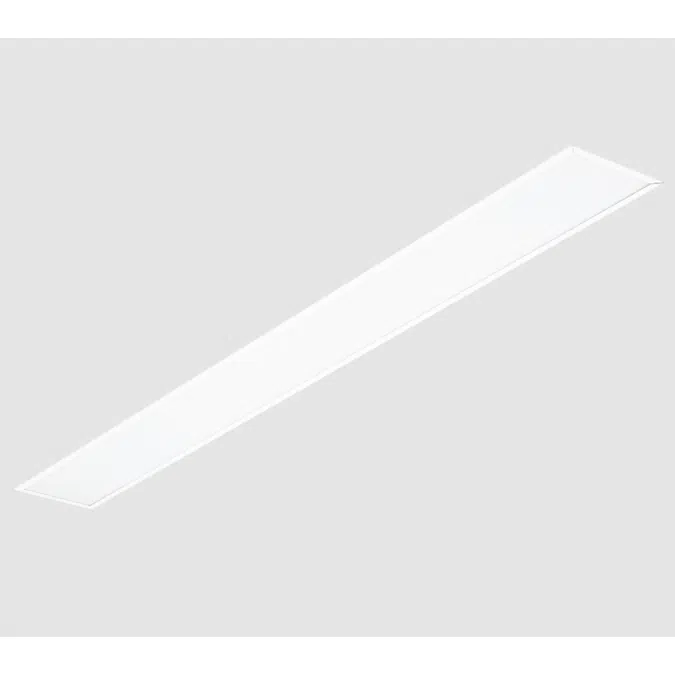

LL6 6" WIDE LINEAR LIGHT

FEATURES

Designed to deliver subtle area lighting with minimal glare for hallways, offices, and classrooms
Flush frame level option with frosted acrylic lens creates the appearance of an unobtrusive and simple line of light – a perfect complement to unique design applications
Fixture is Armstrong TechZone™ and USG Logix™ ceiling systems compatible
High-performance up to 115 lm/W
2', 3', 4', and 5' lengths available
Flush or tegular frosted acrylic lens options available
Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Specification

Housing	22-gauge die-formed C.R.S.
Shielding	Steel door frame with integral torsion springs to secure the frame within the fixture, .125″ thick frosted acrylic.
Finish	92% minimum average reflective white powder polyester coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Electrical	High-quality mid-power LED boards. Rated for 50,000 hours at 70% lumen maintenance (L70). L70 >50,000 hours.
Mounting	NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Drywall kit accessories available for flange applications, shipped separately. Fixture must be installed prior to Drywall Kit.
Listings	• cCSAus certified as luminaire suitable for dry or damp locations. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
