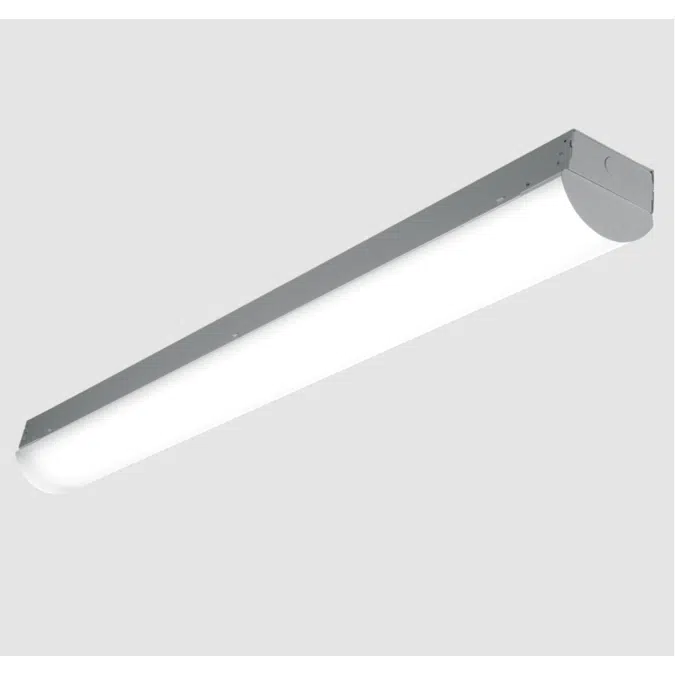

76R ROUND LENS STRIP

FEATURES

Diffuse acrylic lens enhances uniformity and minimizes glare
Diverse selection of mounting accessories for surface and suspended applications
Special reflectors available for precise light distribution
High-performance up to 154 lm/W
Channel connector furnished for continuous row applications (included with 8′ units only)
40ºC max ambient operating temperature
Optional wireguard provides added protection
Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
4' and 8' lengths available
All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
Quick-connect wiring options for continuous row mounting
DLC Compliant
Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Specification

Housing	22-gauge die-formed C.R.S.
Finish	92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
Shielding	Linear ribbed diffuse acrylic
Electrical	High-quality mid-power LED boards. L70 at 60,000 hours. 40°C maximum ambient operating temperature. 50°C maximum ambient operating temperature with HA Option, lumen restrictions apply.
Mounting	Surface (ceiling or wall) or suspended (hanging hardware required).
Listings	• cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations. • DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL. • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.
Warranty	5-year limited warranty, see details
