BIM objects - Free download! RZN-T Series - SHEV control panel - compact

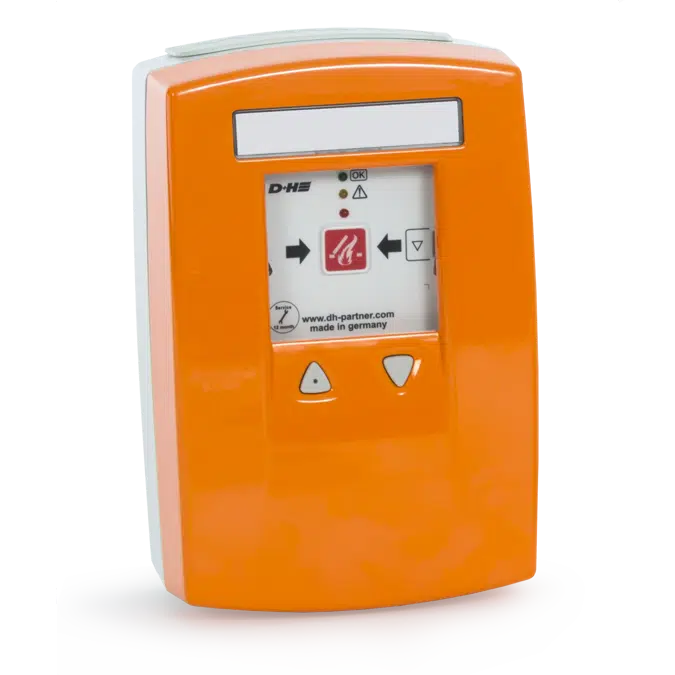

RZN-T Series - SHEV control panel - compact

Performance features

- Compact SHEV control panel, specifically for stairwells
- Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344 and DIN EN 12101‑10, fulfils the building authority requirements in accordance with DIN 18232-9
- Up to 3 A total drive current
- Stabilised output voltage
- Integrated smoke extraction and ventilation button
- Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
- Integrated comfort functions for daily ventilation
- 2 freely programmable and isolated signalling contacts
- Optional connection to rain detectors or wind / rain sensors without an additional module
- Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
- Easy installation by separating installation plate and upper housing

Specification

Technical data

Supply: 230 V AC / 50 Hz / 100 VA
Stand-by power: < 5 W
Output: 24 V DC / 3 A
Ripple: < 0.5 Vss
Mode of operation monitoring: Continuous duty
Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
Type of protection: IP 30
Temperature range: -5 °C ... +40 °C
Line / Group: 1 / 1
Housing: Aluminium
Battery type: Typ 8 (1x)

Technical specification

Unique ref.rzn-t_series
Product familyControl panels
Product groupSHEV control panel
TypeObject (single object)
Date of publishing2019-12-10
Edition number1
Height (mm)235
Width (mm)156
Depth (mm)82

Links

Product urlhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=RZN-T-Series
Installation instructionshttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=RZN-T-Series
Product certificationhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=RZN-T-Series
Technical descriptionhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=RZN-T-Series
Tendering informationhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=RZN-T-Series

Material mainSteel
Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.9

Classification

BIMobject CategoryElectrical - Controls
IFC classificationController
Uniclass 2015 CodePr_75_50_18_17
Uniclass 2015 DescriptionControl panels
