BIM objects - Free download! CPS-B Series - SHEV control panel - basic

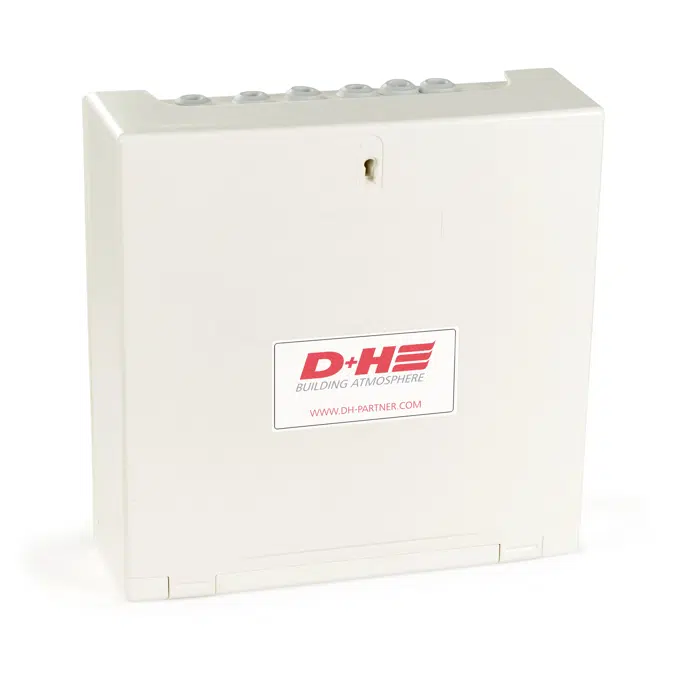

CPS-B Series - SHEV control panel - basic

Performance features

- Compact SHEV control panel, specifically for stairwells
- Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101‑10 and EN 62368-1:2014 + A11:2017, fulfils the building authority requirements in accordance with DIN 18232-9
- Up to 2.5 or 5 A total drive current
- Stabilised output voltage
- Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
- Integrated comfort functions for daily ventilation
- Optional connection to rain detectors or wind / rain sensors without an additional module
- Connection of up to 8 SHEV operation panels and 8 fire detectors per line (Only detectors permitted by D+H may be used)
- Min. 72 hr battery backup supply

Specification

Technical data

Supply: 230 V AC / 50 Hz / 140 VA; 230 V AC / 50 Hz / 145 VA
Stand-by power: < 2 W
Output: 24 V DC / 2.5 A ; 24 V DC / 5 A
Ripple: < 0,5 Vss
Mode of operation monitoring: Continuous duty
Mode of operation alarm/ventilation: Short-time duty 30 % duty cycle
Type of protection: IP 30
Temperature range: -5 °C ... +40 °C
Line / Group: 1 / 1
Housing: Plastic
Colour: White (~ RAL 9016)
Battery type: Typ 2 (2x); Typ 8 (2x)
Weight: 0.187 kg / 0.192 kg

Technical specification

Unique ref.cps-b-series-shev-control-panel
Product familyControl panels
Product groupSHEV control panel
TypeObject (single object)
Date of publishing2026-04-02
Edition number1
Height (mm)310
Width (mm)310
Depth (mm)104

Links

Product urlhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=CPS-B-Series
Installation instructionshttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=CPS-B-Series
Product certificationhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=CPS-B-Series
Technical descriptionhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=CPS-B-Series
Tendering informationhttps://www.dh-partner.com/uk/en_GB/products/controllers?Series=CPS-B-Series

Material mainABS
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryElectrical - Controls
IFC classificationController
Uniclass 2015 CodePr_75_50_18_17
Uniclass 2015 DescriptionControl panels
