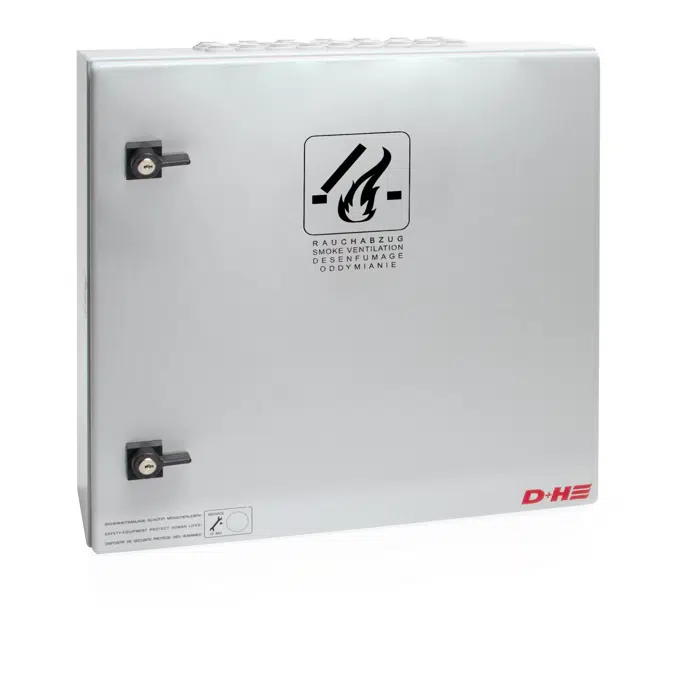

    RZN-M Series - SHEV control panel - compact

    Performance features

    - Compact SHEV control panel - AdComNet Ready
    - Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344 and DIN EN 12101‑10, fulfils the building authority requirements in accordance with DIN 18232-9
    - Up to 4 A / 8 A / 16 A  total drive current
    - Stabilised output voltage
    - Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
    - Option to combine SHEV / building alarm function
    - Integrated comfort functions for daily Ventilation
    - 1 slot for an additional module (16 A control panel)
    - Optional connection to rain detectors or wind / rain sensors without an additional module
    - Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
    - Reasonable dual SHEV system as an alternative to individual machines, e.g. for 2 staircases (16 A control panel)
    - Min. 72 hr battery backup supply

    Specification

    • Technical data

      Supply: 230 V AC / 50 Hz / 120 VA; 230 V AC / 50 Hz / 240 VA; 230 V AC / 50 Hz / 500 VA
      Stand-by power: 6.8 W; 5 W; 13.6 W
      Output: 24 V DC / 4 A; 24 V DC / 8 A; 24 V DC / 16 A
      Ripple: < 2 Vss
      Mode of operation monitoring: Continuous duty
      Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
      Temperature range: -5 °C ... +40 °C
      Line / Group: 2 / 2; 2 / 3
      Battery type: Typ 2 (2x); Typ 8 (2x); Typ 3 (2x)


    Technical specification
    • Unique ref.rzn-m_series
    • Product familyControl panels
    • Product groupSHEV control panel
    • TypeObject (single object)
    • Date of publishing2019-12-10
    • Edition number1
    Links
    Related
    • Material mainSteel
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryElectrical - Controls
    • IFC classificationController
    • Uniclass 2015 CodePr_75_50_18_17
    • Uniclass 2015 DescriptionControl panels
