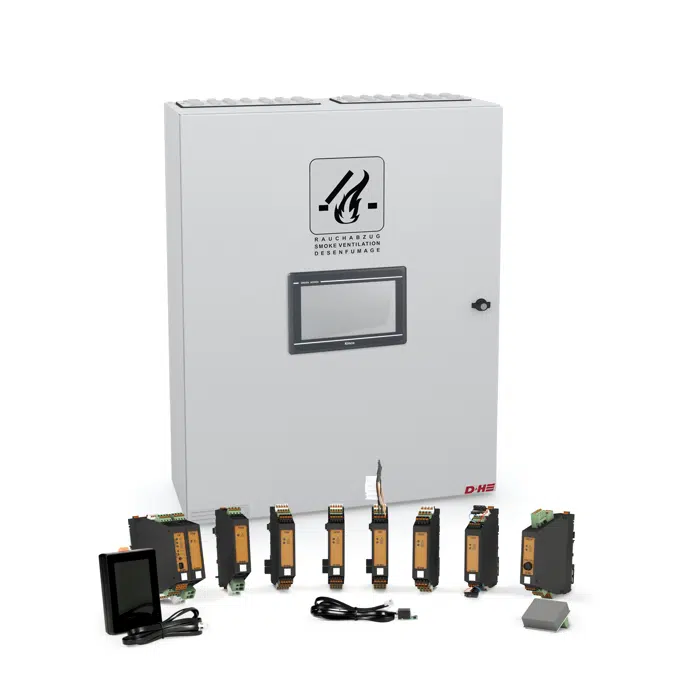

    CPS-M Series - SHEV control panel - modular

    Performance features

    - Power supply of connected drives with up to 20 A / 40 A / 60 A / 80 A total current consumption
    - Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101‑10 and EN 62368-1:2014 + A11:2017, fulfils the building authority requirements in accordance with DIN 18232-9
    - AdComNet bus system for seamless networking of the modules within the CPS-M and further D+H AdComNet components
    - Bidirectional communication with ACB compatible drives - Supply connection and communication using integrated plug connectors » Customisable, programmable control panel functions
    - Sleek menu guidance using a 3.5” Full Colour Touch Panel, through which the system states of the individual modules can be visually observed
    - Freely selectable line/group assignment
    - TMA trigger module: 2 independent lines to connect up to 10 SHEV operation panels each and 30 fire detectors
    - AM actuator module: 2 independent groups for connecting drives, each with a total maximum current of 10 A

    Specification

    • Technical data

      Supply: 230 V AC, 50 Hz, 530 VA / 1040 VA / 1570 VA / 2080 VA
      Output: 24 V DC, 20 A / 40 A / 60 A / 80 A
      Ripple: < 50 mVss
      Mode of operation monitoring: Pulse operation
      Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
      Type of protection: IP 54
      Temperature range: -5 °C ... +40 °C
      Number of TMA: 1; 2; 3
      Number of AM: 1; 2; 3; 5
      Line / Group: 2 / 2; 2 / 4; 4 / 4; 2 / 6; 6 / 6; 4 / 10
      Housing: Steel sheet
      Colour: Light grey (~ RAL 7035)
      Battery type: CPS-M 20 A:Typ 5 (2x), CPS-M 40 A: Typ 6 (2x); CPS-M 60 A: Typ 5 (2x), Typ 6 (2x); CPS-M 80 A: Typ 6 (4x)

    Technical specification
    • Unique ref.cps-m_series
    • Product familyControl panels
    • Product groupSHEV control panel
    • TypeObject (single object)
    • Date of publishing2019-12-10
    • Edition number1
    Links
    Related
    • Material mainSteel
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryElectrical - Controls
    • IFC classificationController
    • Uniclass 2015 CodePr_75_50_18_17
    • Uniclass 2015 DescriptionControl panels
