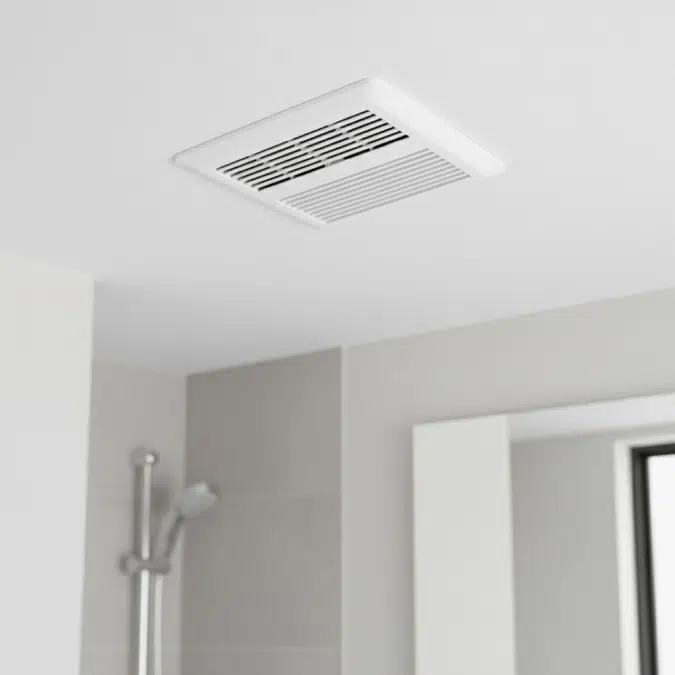

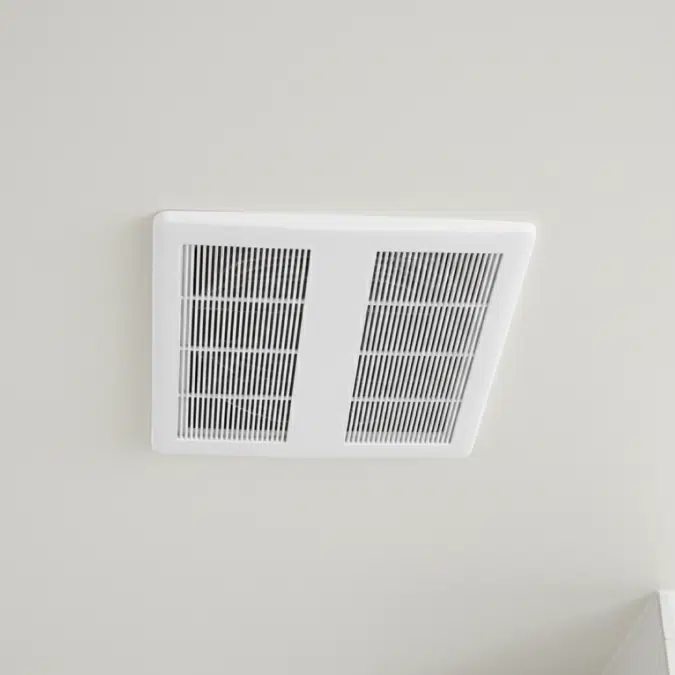

Multi speed Universal Series DC Motor Fan with built-in adjustable humidity sensor ODD-110-18PB

Multi speed Universal Series DC Motor Fan with built-in adjustable humidity sensor ODD-110-18PB

Universal Series DC Motor Fan with adjustable airflow range from 80 to 140 CFM, featuring a built-in humidity sensor for smart, energy-efficient ventilation control.

HIGHLIGHTS

Multi-Speed Options: Three fans in one housing—choose between 80, 110, or 140 CFM
Humidity Control: Built-in adjustable humidity sensor ranging from 30% to 100% RH
Certified Performance: Each speed individually tested and certified by HVI

Voce di capitolato

SpecificationsSpecifications
- Air Volume (CFM): 80 / 110 / 140
- Noise (sones): 0.3 / 0.3 / 0.4
- Fan Watts: 5.6W / 8.5W / 13W
- Duct Diameter: 6"
- Power Rating: 120V/60Hz
- Housing Size: 11-3/8" x 10-1/2" x 7-5/8"
- Grille Dimensions: 13" x 13-3/4"
- Fan Weight: 10.2 lbs
- Warranty: 5 Years
- Case Quantities: 1
140 CFM
Static Pressure Table
0.003 SP 0.058 SP 0.100 SP 0.193 SP 0.252 SP 0.320 SP 0.387 SP 0.448 SP 0.507 SP 0.567 SP
151.3 CFM 150.4 CFM 150.3 CFM 145.6 CFM 146.6 CFM 145.5 CFM 147.0 CFM 139.6 CFM 114.3 CFM 0.00 CFM

110 CFM
Static Pressure Table
0.001 SP 0.058 SP 0.102 SP 0.166 SP 0.249 SP 0.308 SP 0.366 SP 0.436 SP 0.522 SP 0.558 SP
114.3 CFM 114.5 CFM 115.5 CFM 113.0 CFM 114.0 CFM 112.5 CFM 110.2 CFM 110.0 CFM 109.1 CFM 0.00 CFM

80 CFM
Static Pressure Table
0.001 SP 0.060 SP 0.102 SP 0.182 SP 0.248 SP 0.297 SP 0.358 SP 0.397 SP 0.470 SP 0.527 SP
88.3 CFM 85.7 CFM 82.8 CFM 81.5 CFM 83.5 CFM 82.4 CFM 81.6 CFM 83.3 CFM 81.3 CFM 0.00 CFM

Specifiche tecniche

Rif. Unicomulti-speed-universal-series-dc-motor-fan-with-built-in-adjustable-humidity-sensor-odd-110-18pb
Famiglia di prodottoDC Motor Fan
Gruppo di famigliaUniversal Series
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-10-09
Numero di versione1

Links

Link al Prodottohttps://ortechindustries.ca/product/odd-110-18pb
Istruzioni di installazionehttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110-18pb-instruction-manual.pdf?v=1752867225
Certificazione di Prodottohttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110-18pb.pdf?v=1752867225
Descrizione Tecnicahttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110-18pb.pdf?v=1752867225

Relativo a

Progettato inCanada
Prodotto inCanada

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Ventilatori di ventilazione
Codice Uniclass 2015EF_65_40
Descrizione Uniclass 2015Ventilation
Codice CSI MasterFormat 201423 34 00
Titolo CSI MasterFormat 2014HVAC Fans
Numero OmniClass23-33 31 19
Titolo OmniClassFans
