Compact Series Fan with three quiet speed settings ODD-110HS

Compact Series Fan with three quiet speed settings ODD-110HS

Compact Series Fan with three quiet speed settings and a sleek design, featuring a built-in humidity sensor for responsive and efficient ventilation control.

Voce di capitolato

- Ultra Silent & High Performance: Delivers powerful ventilation with minimal noise

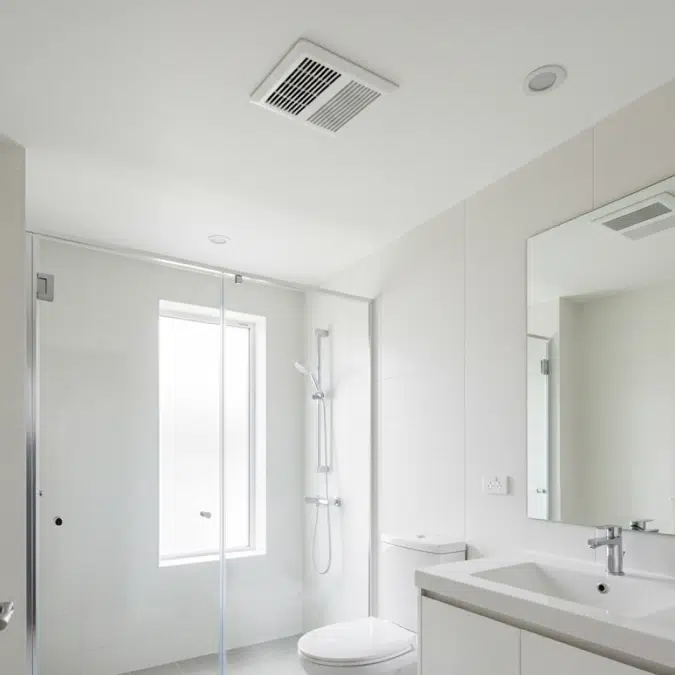

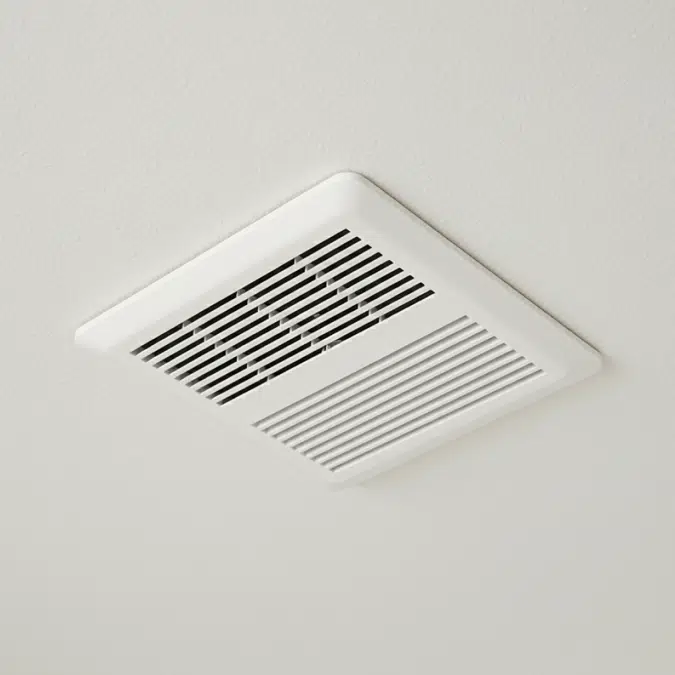

- Ceiling Mounted Design: Ideal for quiet overhead installation
- Three-Speed Operation: Designed to run continuously and quietly at selectable speeds
- Built-in Humidity Sensor: Detects humidity levels from 50% to 100% RH for responsive control
Specifications
- MotorDC motor
- Static Pressure (in inches w.g.)0.1 / 0.25
- Speed Setting110CFM|80CFM|50CFM / 110CFM|80CFM|50CFM
- Air Volume (CFM)113|88|55 / 97|70|45
- Noise (sones)0.9|0.5|<0.3 / 1.5|1.2|1.3
- Fan Watts9.6W|5.9W|3.5W / 11.2W/7.8W/5.9W
- Duct Diameter4"
- Power Rating120V/60Hz
- Housing Size9"×9"×5 3/4"
- Grille Dimensions11 7/8"x11 3/8"
- Grille MaterialPlastic
- Warranty5 Years

Specifiche tecniche

Rif. Unicocompact-series-fan-with-three-quiet-speed-settings-odd-110hs
Famiglia di prodottoDC Motor Fan
Gruppo di famigliaCompact Series
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-10-09
Numero di versione1

Links

Link al Prodottohttps://ortechindustries.ca/products/odd-110hs
Istruzioni di installazionehttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110hs-manual.pdf?v=1752781078
Certificazione di Prodottohttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110hs-manual.pdf?v=1752781078
Descrizione Tecnicahttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-110hs-manual.pdf?v=1752781078

Relativo a

Progettato inCanada
Prodotto inCanada

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Ventilatori di ventilazione
Codice Uniclass 2015EF_65_40
Descrizione Uniclass 2015Ventilation
Codice CSI MasterFormat 201423 34 00
Titolo CSI MasterFormat 2014HVAC Fans
Numero OmniClass23-33 31 19
Titolo OmniClassFans
