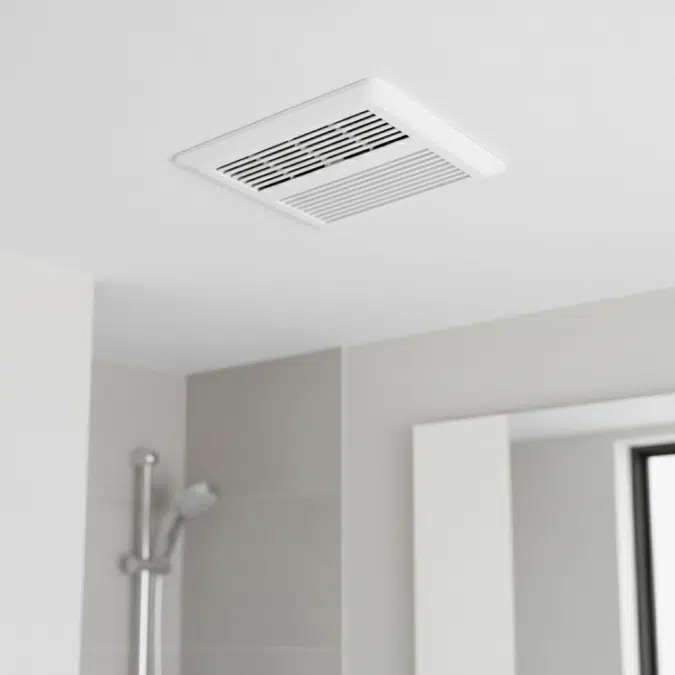

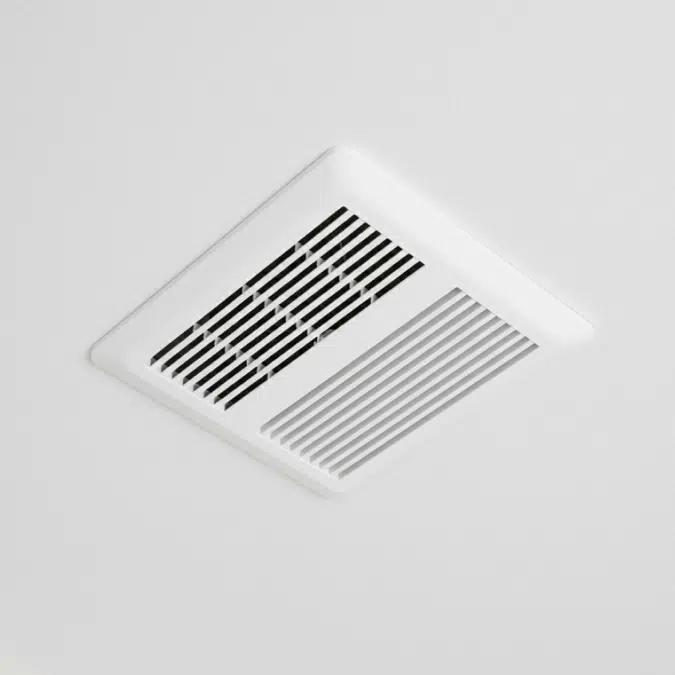

Compact Series 90 CFM Single-Speed Fan ODD-90-1

Compact Series 90 CFM Single-Speed Fan ODD-90-1

Compact Series 90 CFM Single-Speed Fan ODD-90-1

Ortech Industries

Compact Series 90 CFM Single-Speed Fan ODD-90-1

Next Generation Compact Series 90 CFM Single-Speed Fan designed for efficient, space-saving ventilation with reliable airflow performance.

HIGHLIGHTS

Ultra Silent & High Performance: Engineered for powerful ventilation with minimal noise
Versatile Mounting: Suitable for ceiling or wall installation
Efficient Motor: Capacitor start motor ensures high efficiency and long-term reliability

HOUSING

Durable Construction: Built from rugged 26 GA galvanized steel
Detachable 4" Polymeric Collar: Includes lightweight built-in backdraft damper for airflow control

MOTOR | BLOWER

DC Motor: Provides energy-efficient operation
Safety Feature: Motor includes built-in overload disconnect for enhanced safety and extended lifespan

HANGER BARS NOT INCLUDED - Sold Separately

Voce di capitolato

SpecificationsSpecifications
- Motor: DC motor
- Static Pressure (in inches w.g.): 0.1 / 0.25
- Speed Setting: 90CFM
- Air Volume (CFM): 95 / 78
- Noise (sones): 0.7 / 1.2
- Fan Watts: 7.2W / 9.0W
- Duct Diameter: 4"
- Power Rating: 120V/60Hz
- Housing Size: 9"×9"×5 3/4"
- Grille Dimensions: 11 7/8"x11 3/8"
- Efficacy (CFM/W): 13.1 / 8.6
- Fit for Bath (sq.ft.): 75
- Blower Wheel: Centrifugal
- Housing Material: Galvanized steel
- Grille Material: Plastic
- Discharge: Horizontal
- Warranty: 5 Years
- Case Quantities: 6

Specifiche tecniche

Rif. Unicocompact-series-90-cfm-single-speed-fan-odd-90-1
Famiglia di prodottoDC Motor Fan
Gruppo di famigliaCompact Series
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-10-09
Numero di versione1

Links

Link al Prodottohttps://ortechindustries.ca/product/odd-90-1
Istruzioni di installazionehttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-manual.pdf?v=1745866510
Certificazione di Prodottohttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-70-1-odd-90-1-odd-110-1-gurkirat.pdf?v=1745866510
Descrizione Tecnicahttps://cdn.shopify.com/s/files/1/0634/0594/9016/files/odd-70-1-odd-90-1-odd-110-1-gurkirat.pdf?v=1745866510

Relativo a

Progettato inCanada
Prodotto inCanada

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Ventilatori di ventilazione
Codice Uniclass 2015EF_65_40
Descrizione Uniclass 2015Ventilation
Codice CSI MasterFormat 201423 34 00
Titolo CSI MasterFormat 2014HVAC Fans
Numero OmniClass23-33 31 19
Titolo OmniClassFans
