AprilAire V22BEC Energy Recovery Ventilator

AprilAire V22BEC Energy Recovery Ventilator

The AprilAire V22BEC Energy Recovery Ventilator offers a cutting-edge ventilation solution for new, tightly built homes. Featuring a user-friendly, push-button interface and dual fan speed control, this ventilator provides an effortless way to achieve optimal Indoor Air Quality.

With a focus on healthy and efficient delivery of fresh air, the V22BEC ERV is designed to help control humidity, making it an ideal choice for those seeking a comprehensive ventilation system that prioritizes both convenience and performance. Exhaust stale air while supplying an equal amount of fresh, outdoor air eliminating volatile organic compounds, and preserve the condition of the air through the exchange of heat and humidity.

Take the next step toward a Healthy Home environment with the AprilAire V22BEC Energy Recovery Ventilator. Find a Healthy Air Professional near you.

Voce di capitolato

Performance
- SRE: 72%
- ASRE: 74%
- Airflow: 118 CFM @ 0.30 in. w.c. external ductwork resistance (≈240 equivalent feet for each “fresh” and “stale” air stream)
- Efficacy: 1.45 CFM/Watt @ 0.2 in. w.c. (maximum fan setting)
Electrical
- 120 VAC, 1.3A
- Equipped with 4 ft. grounded power cord
Filtration
- 2 × Washable foam air filters

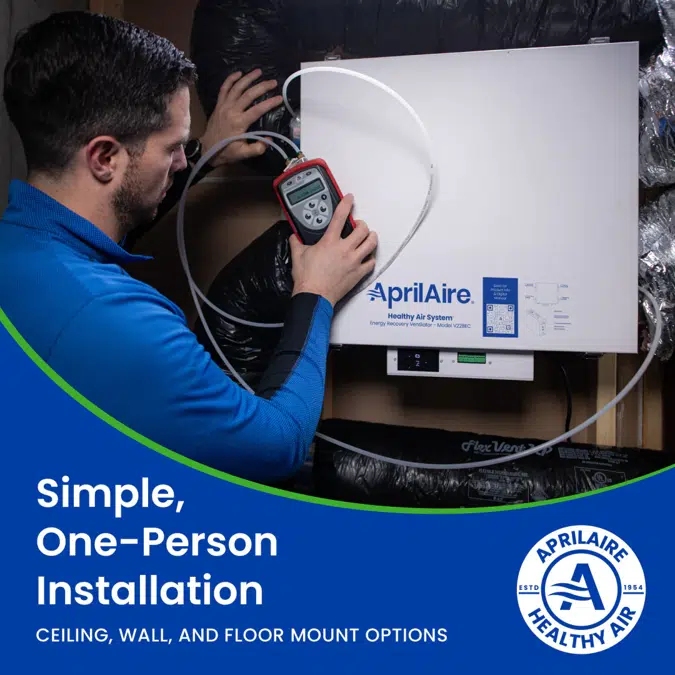

Mounting Configurations
- Ceiling, wall, or floor mount capable
Weight
- Unit Weight: 50 lbs

Specifiche tecniche

Rif. Unicoaprilaire-v22bec-energy-recovery-ventilator
Famiglia di prodottoFresh Air Ventilation
Gruppo di famigliaAir Ventilators
TipoOggetto (oggetto singolo)
Data di pubblicazione2025-11-07
Numero di versione1

Links

Relativo a

Materiale principaleMetallo
Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Ventilazione meccanica
Codice Uniclass 2015EF_65_40
Descrizione Uniclass 2015Ventilation
Codice CSI MasterFormat 201433 81 33
Titolo CSI MasterFormat 2014Communications Blowers, Fans, and Ventilation
Numero OmniClass23-33 49 25 15
Titolo OmniClassSupply Air Ventilation Registers
