AprilAire 8144NC Fresh Air Ventilator
AprilAire 8144NC Fresh Air Ventilator
AprilAire 8144NC Fresh Air Ventilator
    AprilAire

    AprilAire 8144NC Fresh Air Ventilator

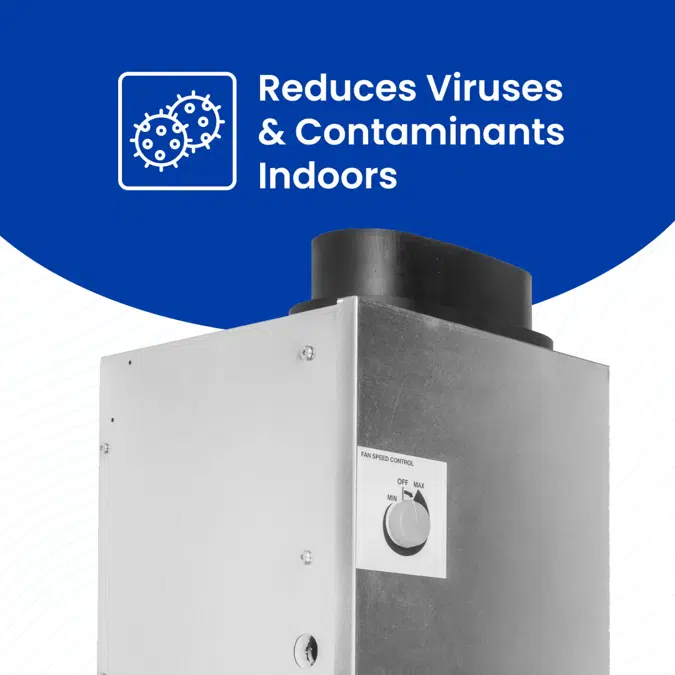

    The AprilAire 8144NC Fresh Air Ventilator is designed to bring in precisely the right amount of outdoor air into today's efficiently-designed homes with better air control and more benefits than exhaust ventilation. It is compatible with optional controls (sold separately) such as the AprilAire 8120X Ventilation Control and select AprilAire Thermostats. Designed and assembled in the USA utilizing US and global components and backed by a 5-year warranty, the AprilAire 8144NC provides reliable, high-quality ventilation, complete with all necessary components for easy setup.

    Features:

    • FRESH AIR DELIVERY – The AprilAire 8144NC Fresh Air Ventilator is designed to bring in precisely the right amount of outdoor air into today's efficiently-designed homes with better air control and more benefits than exhaust ventilation
    • ENERGY EFFICIENCY – Optimize energy savings with this ENERGY STAR®-certified unit
    • DURABLE DESIGN – The slim, metal design makes this fresh air ventilation system durable, and it can be installed in tight spaces like attics and closets
    • HEALTH AND COMFORT – Dilute trapped indoor air full of airborne contaminants like allergens, chemicals, viruses, and bacteria. Help push stale air outside by facilitating indoor air movement.

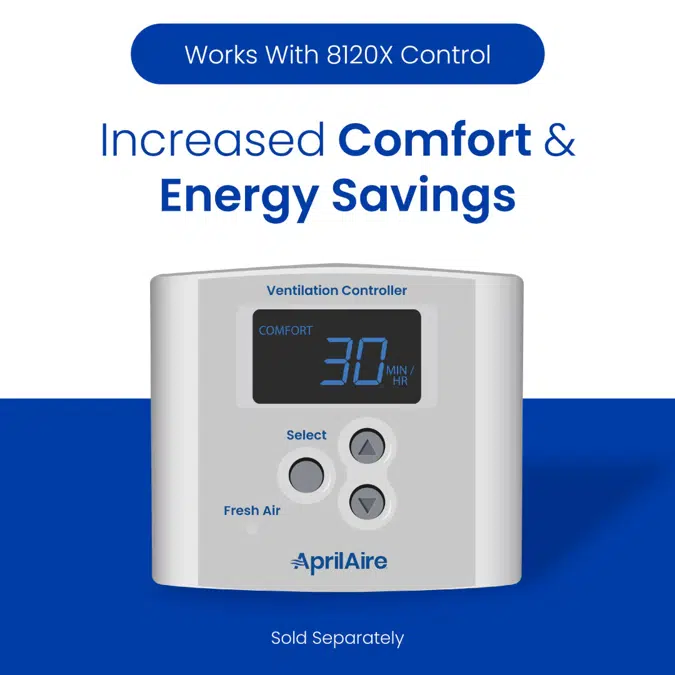

    • INTEGRATED CONTROL – Compatible with optional controls (sold separately) such as the AprilAire 8120X Ventilation Control and select AprilAire Thermostats (Models 8920W, 8840, S86WMUPR, and S86NMUPR)
    • INTEGRATED POWER DAMPER AND REPLACEABLE FILTER – Features an integrated powered damper that prevents air from flowing back out of the duct when its blower is not in use and removable, washable MERV 6 Filter that should be cleaned annually
    • PART OF THE APRILAIRE HEALTHY AIR SYSTEM – The 8144NC Fresh Air Ventilator is a part of your one-stop, all purpose investment toward a greater quality of life. The AprilAire Healthy Air System (additional components sold separately) combines fresh air ventilation, air filtration, humidity control, radon control, zoning and IAQ control, and UVC sanitization to address all aspects of Indoor Air Quality in the home.
    • BUY WITH CONFIDENCE – AprilAire Fresh Air Ventilators are designed and assembled in the USA utilizing US and global components by AprilAire, the leader in Indoor Air Quality solutions for the home since 1954, and come with a 5-year warranty


    Voce di capitolato
      • Overall Dimensions: See drawing
      • Inlet Collar: 6" round
      • Outlet Collar: 6" oval
      • Ventilation Setting: Off, 6–60 min/hr
      • Code/Comfort Operation: Yes
      • Ambient Temperature: 0°F–160°F
      • Voltage: 115VAC, 1 phase, 60 Hz
      • Power: Hardwired
      • Ducting: 6" dia. flexible insulated duct
      • Warranty: 5 years
      • ETL: Tested to UL Standard 705 – Power Ventilators
      • Use Limitation: Not for outdoor use
    Specifiche tecniche
    • Rif. Unicoaprilaire-8144nc-fresh-air-ventilator
    • Famiglia di prodottoFresh Air Ventilation
    • Gruppo di famigliaAir Ventilators
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2025-11-07
    • Numero di versione1
    Relativo a
    • Materiale principaleMetallo
    • Progettato inStati Uniti
    • Prodotto inStati Uniti
    Classificazioni
    • Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Ventilazione meccanica
    • Codice Uniclass 2015EF_65_40
    • Descrizione Uniclass 2015Ventilation
    • Codice CSI MasterFormat 201433 81 33
    • Titolo CSI MasterFormat 2014Communications Blowers, Fans, and Ventilation
    • Numero OmniClass23-33 49 25 15
    • Titolo OmniClassSupply Air Ventilation Registers
