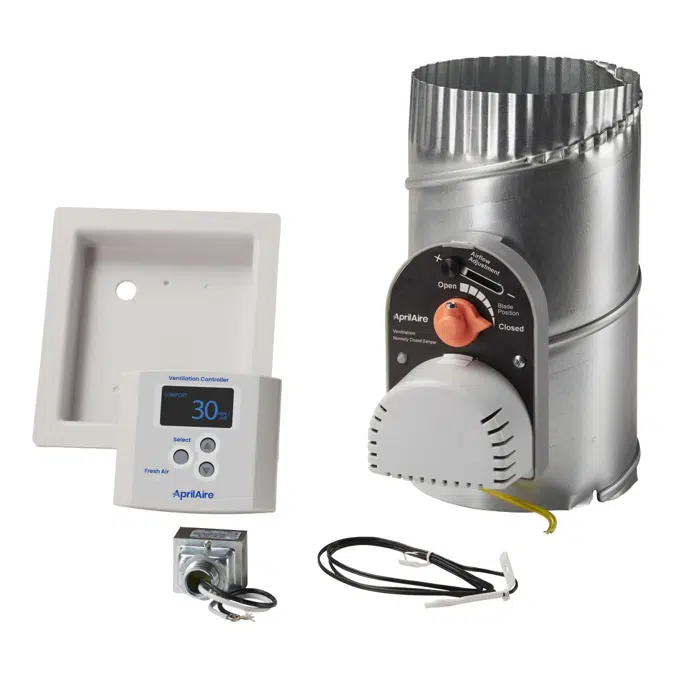

AprilAire 8126X Whole-House Ventilation Control System
AprilAire 8126X Whole-House Ventilation Control System
    AprilAire

    AprilAire 8126X Whole-House Ventilation Control System

    AprilAire Fresh Air Ventilation. Help Your Home Exhale the Bad Air.

    AprilAire Whole-House Fresh Air Ventilation Systems dilute trapped indoor air full of airborne contaminants like allergens, chemicals, viruses, and bacteria. In addition, AprilAire Fresh Air Ventilation Systems help push trapped stale air outside by facilitating indoor air movement. Bring fresh air into your whole home to dilute all the pollutants that could be present.

    Benefits:

    • FRESH AIR DELIVERY – The 8126X is designed to bring in precisely the right amount of outdoor air into your efficiently-designed homes with better air control and more benefits than exhaust ventilation
    • ENERGY EFFICIENT – brings fresh air into the home whenever the HVAC system fan runs and saves energy over other economical ventilation options
    • VENTILATION – The system measures indoor humidity to stop ventilation at adjustable high and low humidity lockouts set by the homeowner
    • MINIMAL MAINTENANCE – Clean out the inlet ventilation hood as needed
    • OUTDOOR TEMPERATURE SENSOR – The sensor measures outdoor temperature to stop ventilation at adjustable high and low outdoor temperature lockouts set by the homeowner
    • PART OF THE APRILAIRE HEALTHY AIR SYSTEM – The 8126X Ventilation Control System is a part of your one-stop, all purpose investment toward a greater quality of life. The AprilAire Healthy Air System (additional components sold separately) combines fresh air ventilation, air filtration, humidity control, radon control, zoning and IAQ control, and UVC sanitization to address all aspects of Indoor Air Quality in the home.
    • BUY WITH CONFIDENCE – AprilAire Ventilation Control Systems are designed and assembled in the USA utilizing US and global components by AprilAire, the leader in Indoor Air Quality solutions for the home since 1954, and come with a 5-year warranty
    Voce di capitolato
        • Overall controller dimensions: 4.11" W × 3.6" H × 1.59" D
        • Duct opening dimensions (for humidity sensor):
          • 0.63" dia. in sheet metal
          • 5.75" × 5.25" for duct board (duct board bracket included)
        • Input power for the control (from HVAC system transformer): 24VAC, 2VA
        • Damper (vent) and GH outputs: 10VA @ 30VAC max
        • HVAC equipment terminals: R, C, W, Y, O, GS, GH
        • Equipment compatibility: Furnace and AC or Heat Pump
        • Outdoor temperature sensor inputs: Thermistor (provided)
        • Damper transformer (provided): 24VAC, 10VA
        • Compliance: ASHRAE 62.2
        • Installation temperature limits: 20°F–140°F
        • Damper size: 6" dia.
        • Overall damper dimensions (with actuator): 10.75" H × 10.32" dia.
        • Max static pressure: 1" w.c.
        • Max system velocity: 1000 ft/min
        • Total power consumption: 10VA (6 watts)
    Specifiche tecniche
    • Rif. Unicoaprilaire-8126x-whole-house-ventilation-control-system
    • Famiglia di prodottoFresh Air Ventilation
    • Gruppo di famigliaAir Ventilators
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2025-11-07
    • Numero di versione1
    Relativo a
    • Materiale principaleMetallo
    • Progettato inStati Uniti
    • Prodotto inStati Uniti
    Classificazioni
    • Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Canalizzazione
    • Codice Uniclass 2015EF_65_40
    • Descrizione Uniclass 2015Ventilation
    • Codice CSI MasterFormat 201433 81 33
    • Titolo CSI MasterFormat 2014Communications Blowers, Fans, and Ventilation
    • Numero OmniClass23-33 49 25 15
    • Titolo OmniClassSupply Air Ventilation Registers
