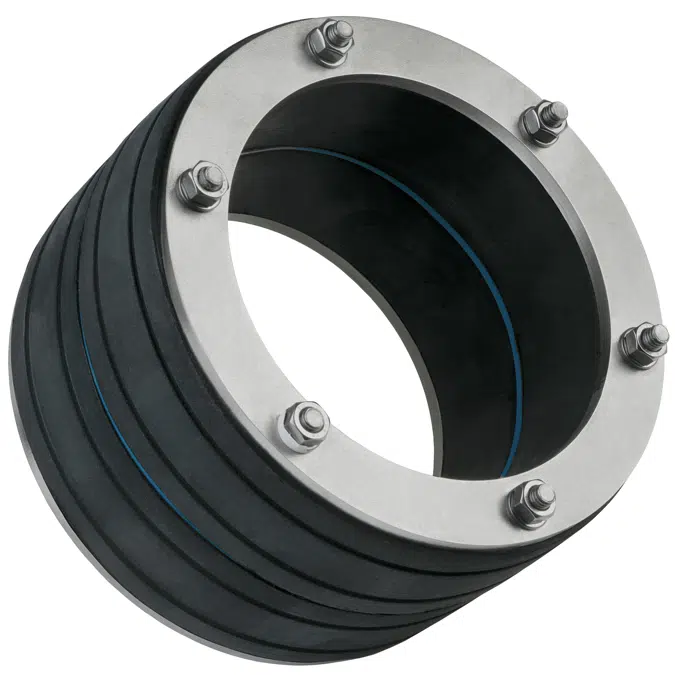

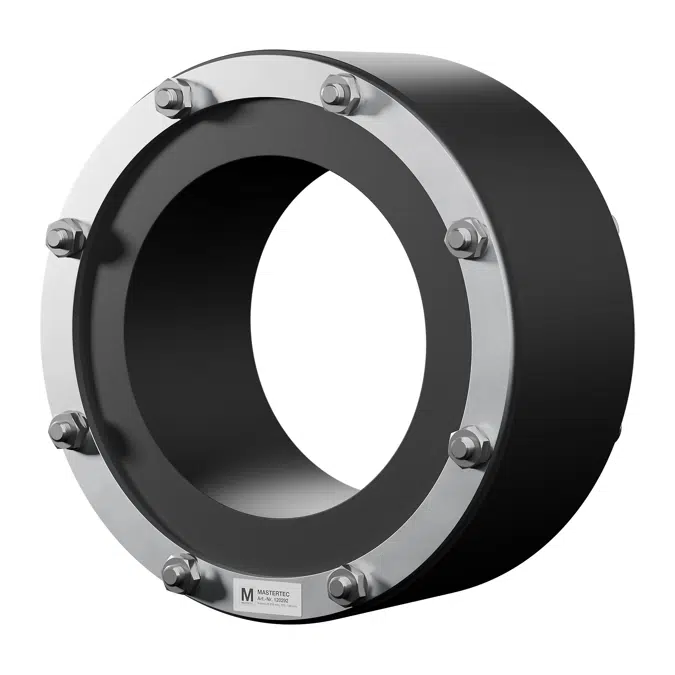

MASTER-RING | Supersoft | Gasket Insert

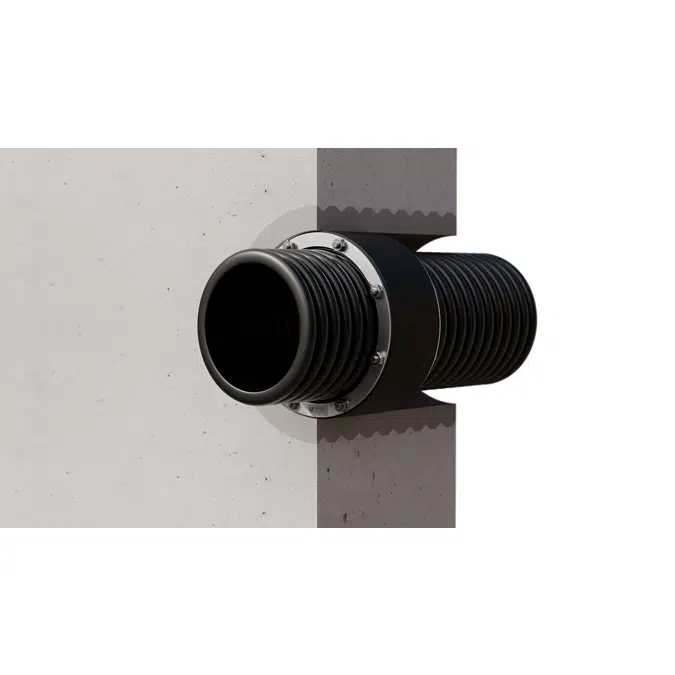

Gasket inserts for corrugated and thin-walled media pipes.

available in Revit 2022-2027 and as IFC

Inner diameters available: 100-250 mm

Specification

material:
rubber: EPDM | sealing width: 2x 40 mm | pressure plates, screws, nuts: V2 A
available diameters:
100-250 mm
overall length:
80 mm
versions (Ø wall sleeve or core drill hole / Ø medium pipe):
- Art.-No. 120280: Ø 100 mm / Ø 48 - 51 mm
- Art.-No. 120282: Ø 100 mm / Ø 62 - 63 mm
- Art.-No. 120284: Ø 150 mm / Ø 74 - 77 mm
- Art.-No. 120286: Ø 150 mm / Ø 88 - 91 mm
- Art.-No. 120288: Ø 150 mm / Ø 108 - 110 mm
- Art.-No. 120290: Ø 200 mm / Ø 108 - 112 mm
- Art.-No. 120292: Ø 200 mm / Ø 123 - 126 mm
- Art.-No. 120294: Ø 200 mm / Ø 159 - 160 mm
- Art.-No. 120296: Ø 250 mm / Ø 158 - 162 mm
