WELLO | Active Wall Sleeve

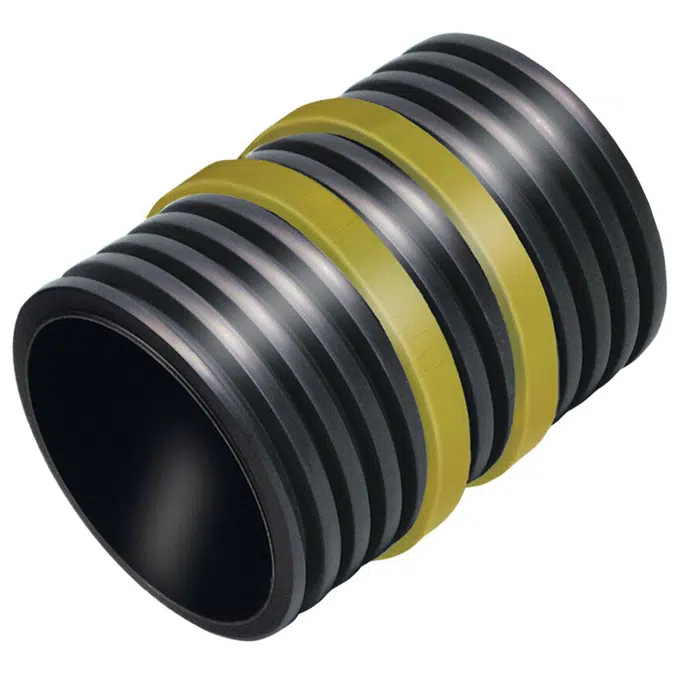

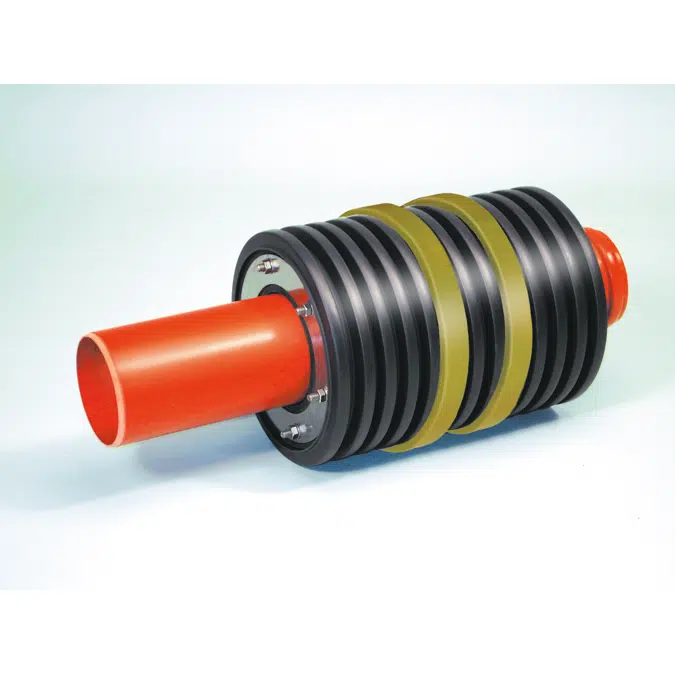

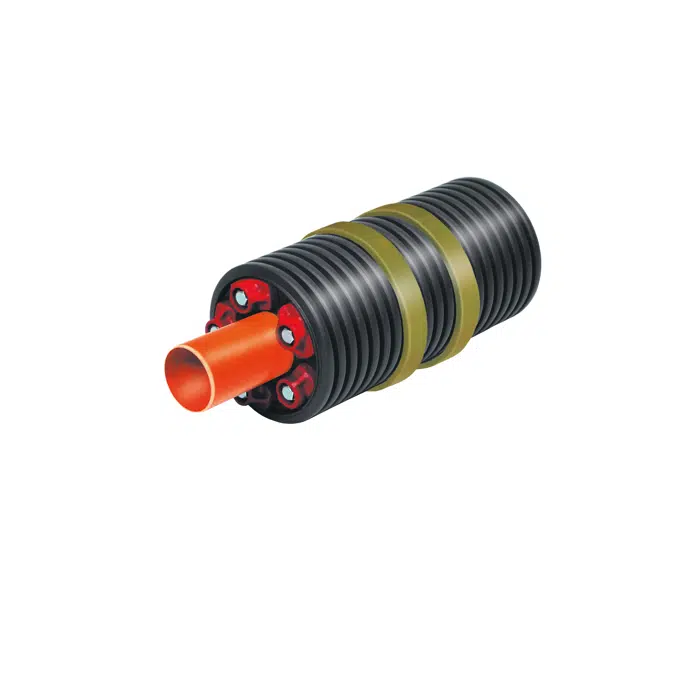

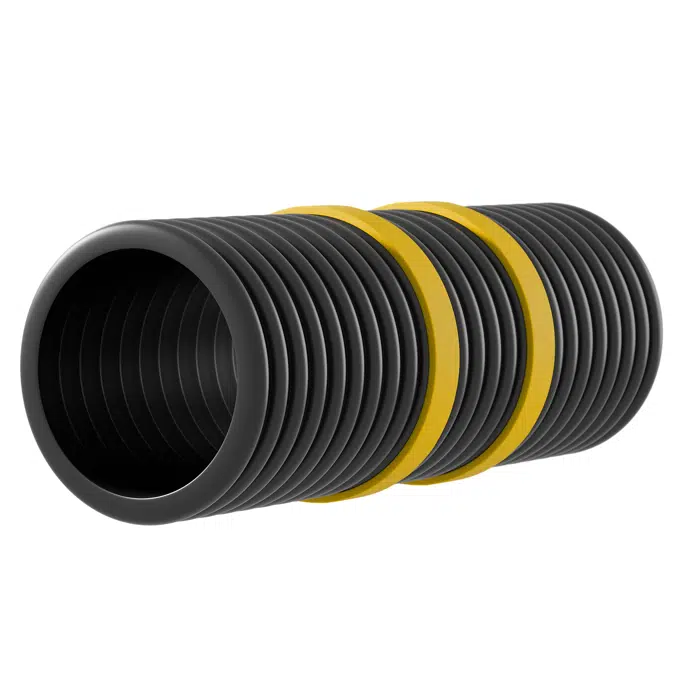

PE lining pipe with two swelling tapes applied centrally around the wall sleeve that act as waterstops. Its inner surface is smooth while the corrugated outside ensures a ﬁrm bond with the concrete. Available inner diameters: 100-400 mm

available in Revit 2023-2027 and as IFC

Specification

material:
pipe: PE-HD | swelling tape: bentonite
available inner diameters:
100-400 mm
available lengths:
200-600 mm
versions (Ø inner diameter / length):
Please find the specific article numbers and lengths in the attached Revit Family Type Catalog in the download area.

Please choose your installation situation, besides that both Revit models are similar:
- WELLO floor plate

  Revit model No. 1
  - Art.-No. 080130 - 080138: Ø 100 mm / 200 - 600 mm
  - Art.-No. 080140 - 080148: Ø 125 mm / 200 - 600 mm
  - Art.-No. 080150 - 080158: Ø 150 mm / 200 - 600 mm
  - Art.-No. 080160 - 080168: Ø 200 mm / 200 - 600 mm
  - Art.-No. 080170 - 080178: Ø 250 mm / 200 - 600 mm
  - Art.-No. 080180 - 080188: Ø 300 mm / 200 - 600 mm
  - Art.-No. 080190 - 080198: Ø 350 mm / 200 - 600 mm
  - Art.-No. 080200 - 080208: Ø 400 mm / 200 - 600 mm

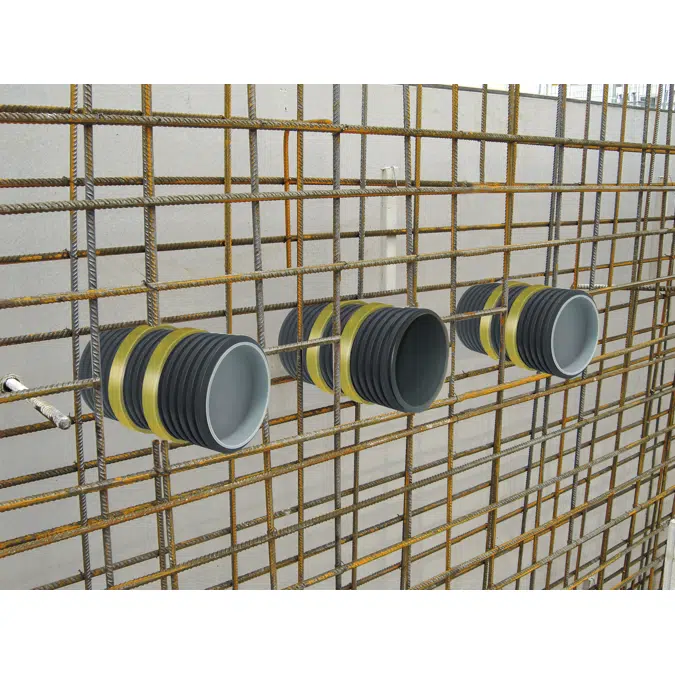

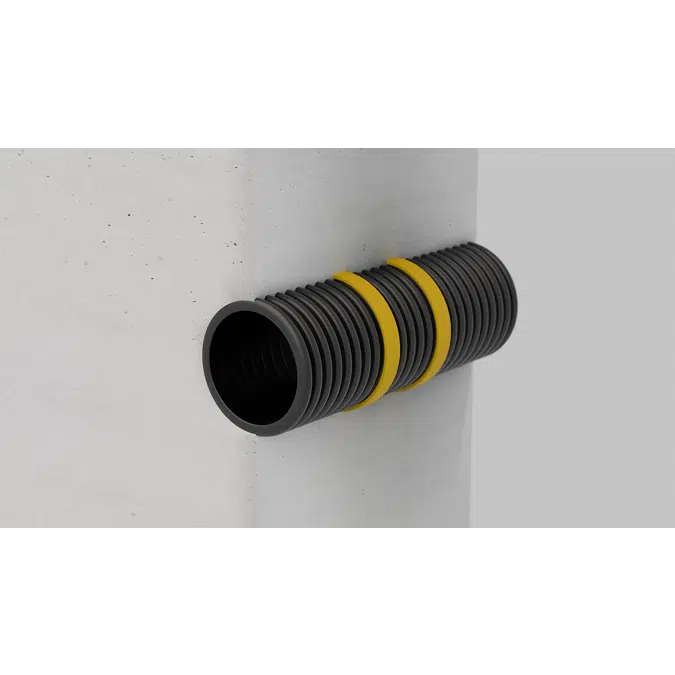

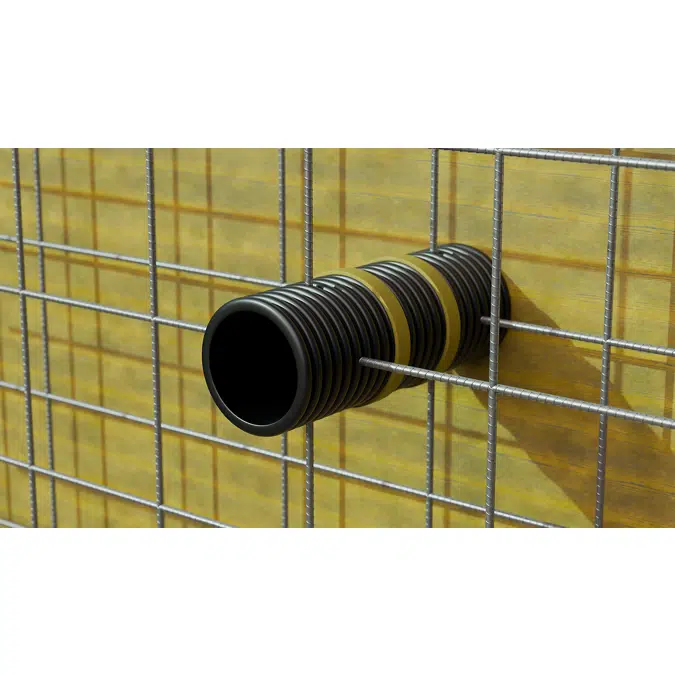

- WELLO wall

  Revit model No. 2
  - Art.-No. 080130 - 080138: Ø 100 mm / 200 - 600 mm
  - Art.-No. 080140 - 080148: Ø 125 mm / 200 - 600 mm
  - Art.-No. 080150 - 080158: Ø 150 mm / 200 - 600 mm
  - Art.-No. 080160 - 080168: Ø 200 mm / 200 - 600 mm
  - Art.-No. 080170 - 080178: Ø 250 mm / 200 - 600 mm
  - Art.-No. 080180 - 080188: Ø 300 mm / 200 - 600 mm
  - Art.-No. 080190 - 080198: Ø 350 mm / 200 - 600 mm
  - Art.-No. 080200 - 080208: Ø 400 mm / 200 - 600 mm
