MHC Multi-Utility Triple

MHC Multi-Utility Triple

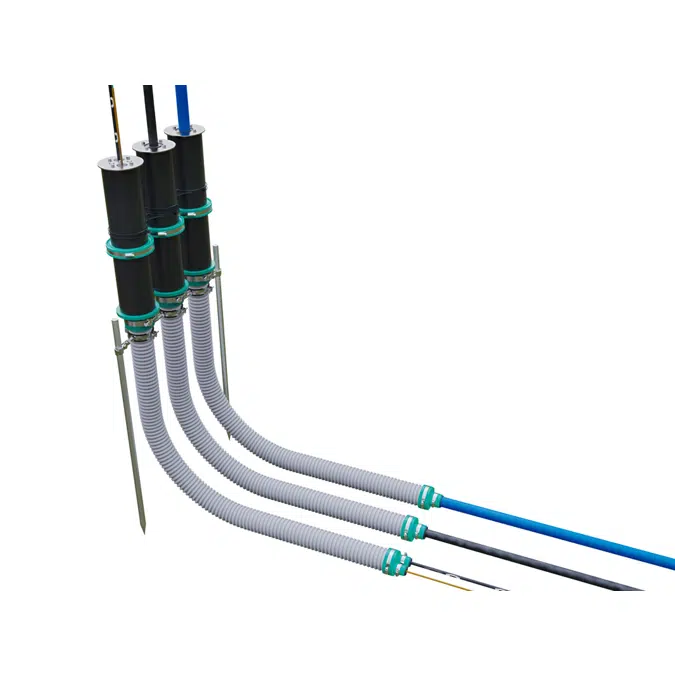

Service duct sets for electrical, water and communication connections
Tested according to DVGW VP 601 (chapter 4.5)

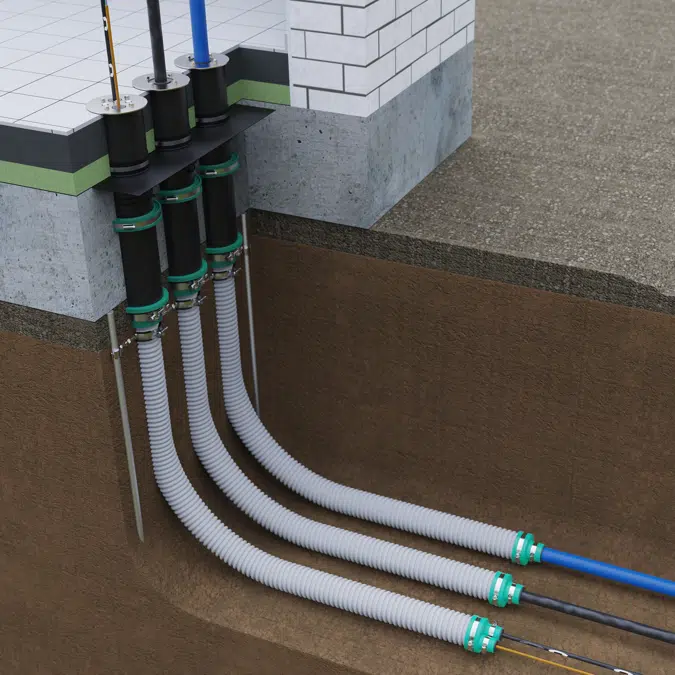

For buildings without basement
For inserting multiple media lines

available in Revit 2022-2027 and as IFC

Specification

- triple-compartment service ducts
- for media lines from 4 to 40 mm

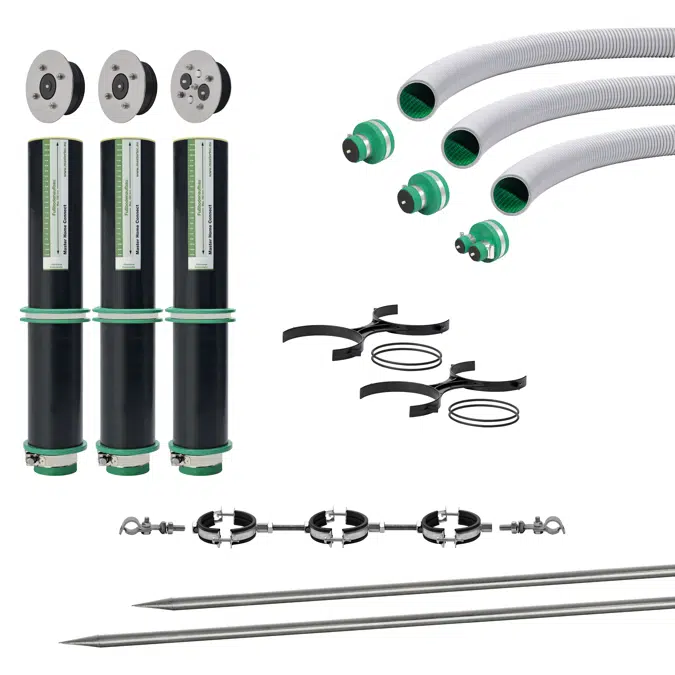

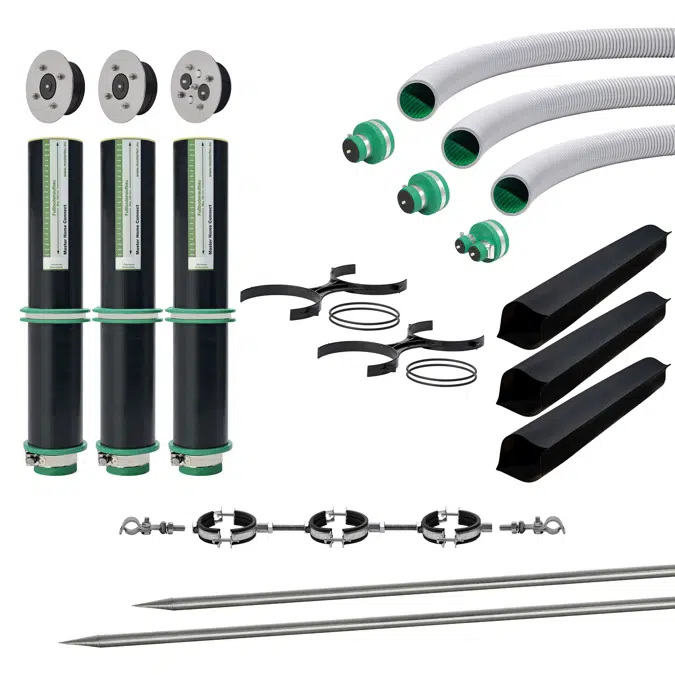

- sets include cable conduits of the appropriate length
versions:
- Art.-No. 080038: incl. 3 m cable conduit Ø 75 mm (external)
- Art.-No. 080039: incl. 6 m cable conduit Ø 75 mm (external)
- Art.-No. 070040: incl. 10 m cable conduit Ø 75 mm (external)
- Art.-No. 070015: incl. 15 m cable conduit Ø 75 mm (external)

Technical specification

Unique ref.mhc-mehrsparte-3-fach
Date of publishing2026-03-06
Edition number1

Links

Product urlhttps://www.mastertec.eu/en/products/pressure-water-tight-service-ducts/mhc-house-lead-ins/mhc-multiple-house-lead-ins
Installation instructionshttps://www.mastertec.eu/en/p/pdf/00080040/buildingmanual

Classification

BIMobject CategoryBuilding Materials - Waterproofing & Membranes
