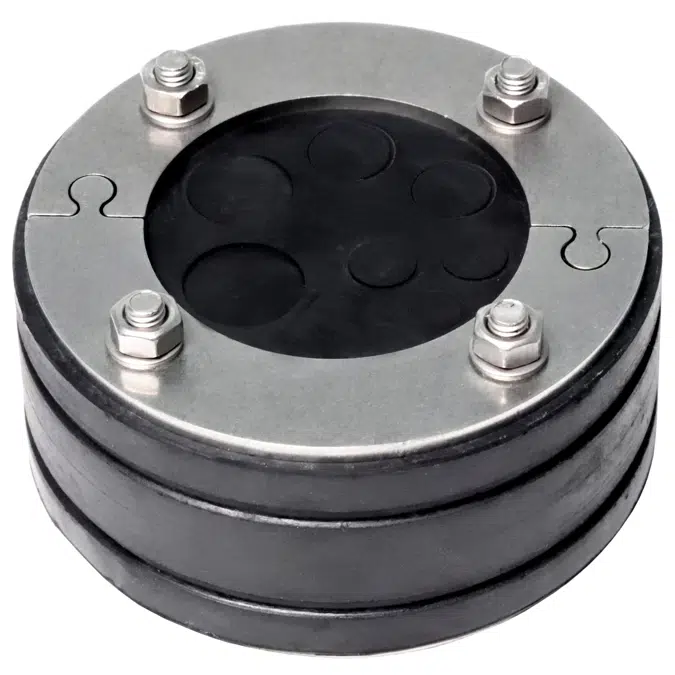

MASTER-RING | Gasket Insert | Multiple

V2A stainless steel multiple wall duct gasket inserts for cables and pipes. Available inner diameters: 80 - 200 mm

available in Revit 2022-2027 and as IFC

Specification

material:
rubber: EPDM | pressure plates, screws, nuts: V2 A
available inner diameters:
80-200 mm
overall length:
40 mm
versions (Ø wall sleeve or core drill hole):

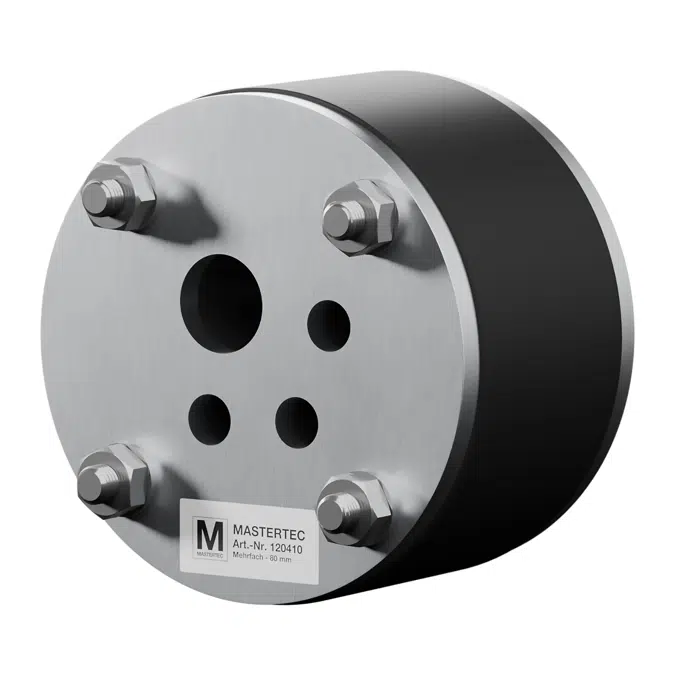

- Art.-No. 120410: Ø 80 mm

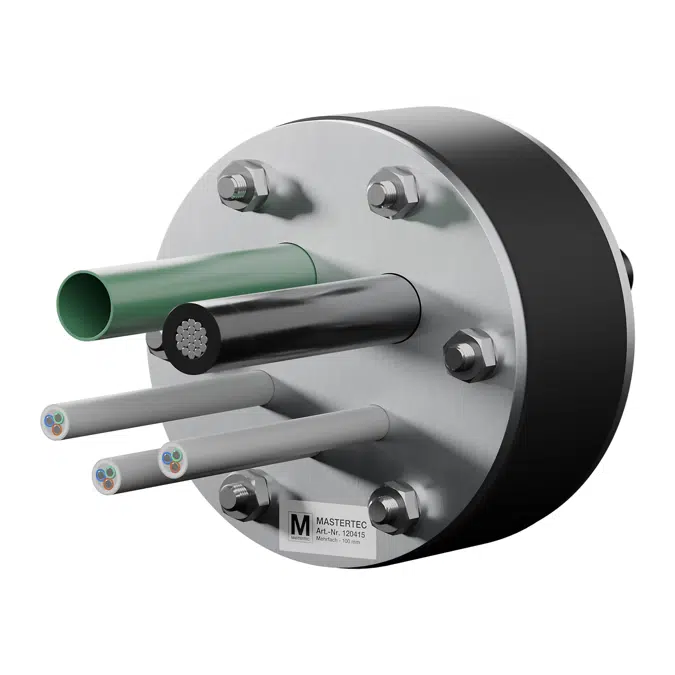

- Art.-No. 120415: Ø 100 mm
- Art.-No. 120420: Ø 125 mm
- Art.-No. 120425: Ø 150 mm
- Art.-No. 120426: Ø 200mm
The technical feasibility of the combination of number and diameter of the media pipe in relation to the minimum diameter of the core drill hole or wall sleeve must be checked. Please contact us.
