KG Sewage Pipe Bushing | Type DM | Novo

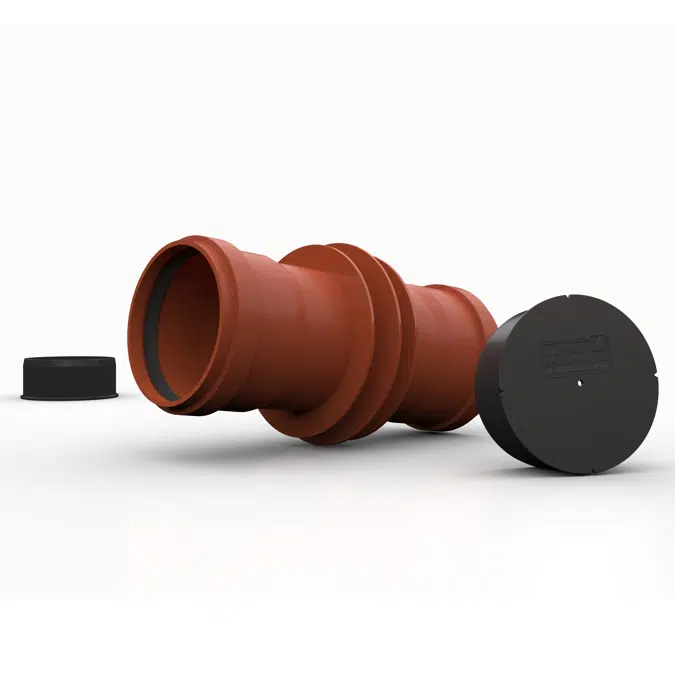

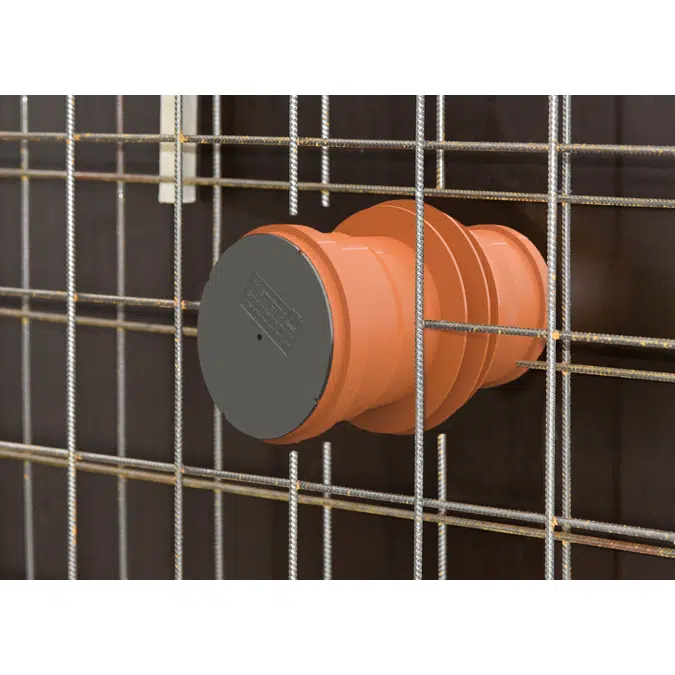

KG sewage pipe bushing with "Novo" water barrier. The double socket is cast into concrete. After concreting, the closure plugs are removed and the seals inserted. The next pipe can be connected.

available in Revit 2023-2027 and as IFC

Specification

material:
polypropylene
available inner diameters:
110-125 mm
for wall thicknesses:
240-400 mm
versions (Ø sewage pipe / length):
- Art.-No. 080350: Ø 110 mm / 240 mm
- Art.-No. 080351: Ø 110 mm / 250 mm
- Art.-No. 080352: Ø 110 mm / 300mm
- Art.-No. 080353: Ø 110 mm / 365 mm
- Art.-No. 080354: Ø 110 mm / 400 mm
- Art.-No. 080355: Ø 125 mm / 240 mm
- Art.-No. 080356: Ø 125 mm / 250 mm
- Art.-No. 080357: Ø 125 mm / 300 mm
- Art.-No. 080358: Ø 125 mm / 365 mm
- Art.-No. 080359: Ø 125 mm / 400 mm
