KG Sewage Pipe Bushing | Type DM | Base

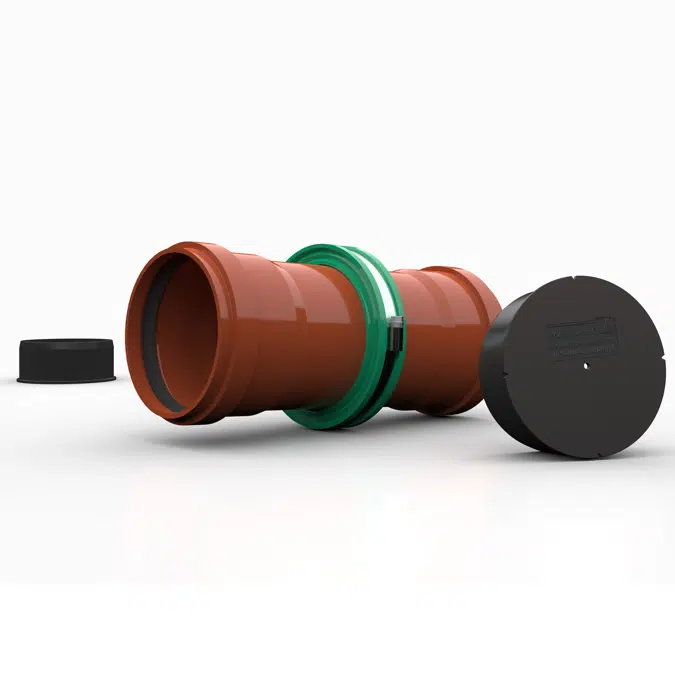

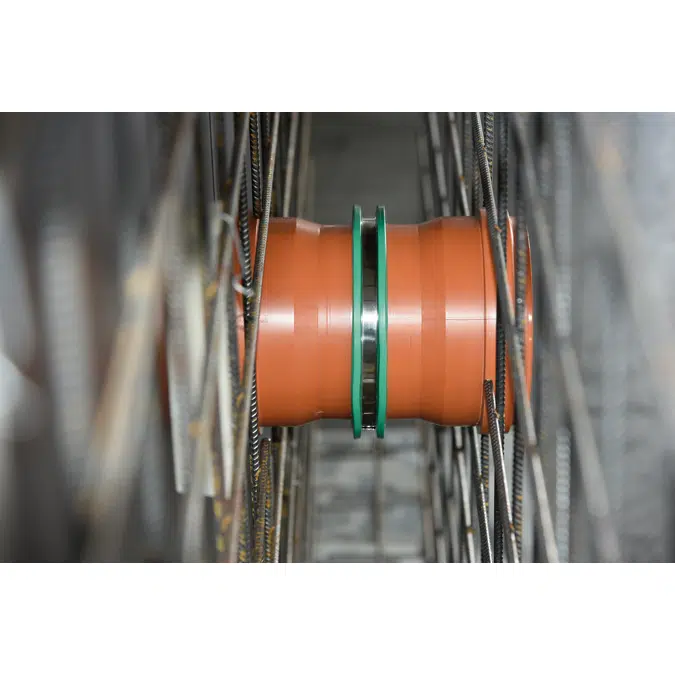

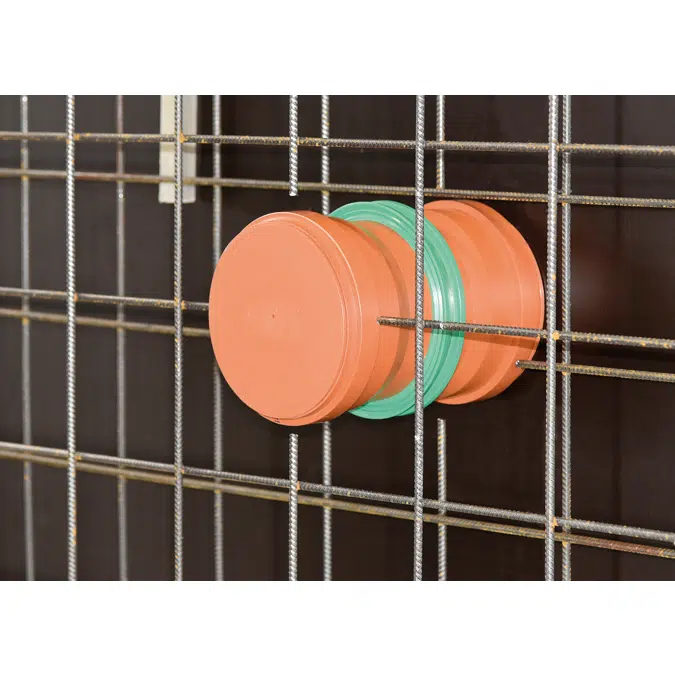

KG sewage pipe bushing with "Base" water barrier. The double socket is cast into concrete. After concreting, the closure plugs are removed and the seals inserted. The next pipe can be connected.

available in Revit 2023-2027 and as IFC

Specification

material:
corpus: PVC solid wall | sealing: TPE
available inner diameters:
110-200 mm
for wall thicknesses:
180-400 mm
versions (Ø sewage pipe / length):
- Art.-No. 080404: Ø 110 mm / 180 mm
- Art.-No. 080405: Ø 110 mm / 200 mm
- Art.-No. 080419: Ø 125 mm / 180 mm
- Art.-No. 080420: Ø 125 mm / 200 mm
- Art.-No. 080433: Ø 160 mm / 200 mm
- Art.-No. 080434: Ø 160 mm / 240 mm
- Art.-No. 080436: Ø 160 mm / 250 mm
- Art.-No. 080438: Ø 160 mm / 300 mm
- Art.-No. 080440: Ø 160 mm / 365 mm
- Art.-No. 080442: Ø 160 mm / 400 mm
- Art.-No. 080443: Ø 200 mm / 200 mm
- Art.-No. 080444: Ø 200 mm / 240 mm
- Art.-No. 080445: Ø 200 mm / 250 mm
- Art.-No. 080446: Ø 200 mm / 300 mm
- Art.-No. 080448: Ø 200 mm / 365 mm
- Art.-No. 080450: Ø 200 mm / 400 mm
