DURO PLUS | High Pressure Wall Sleeve

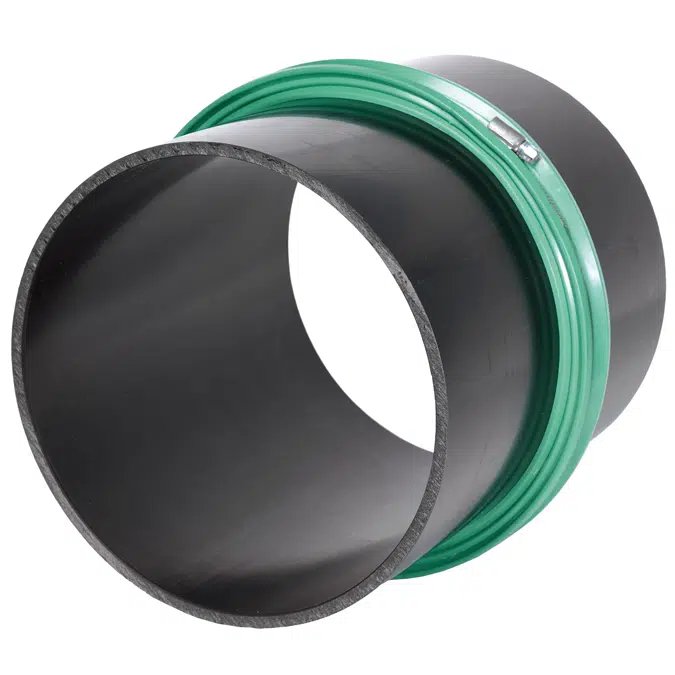

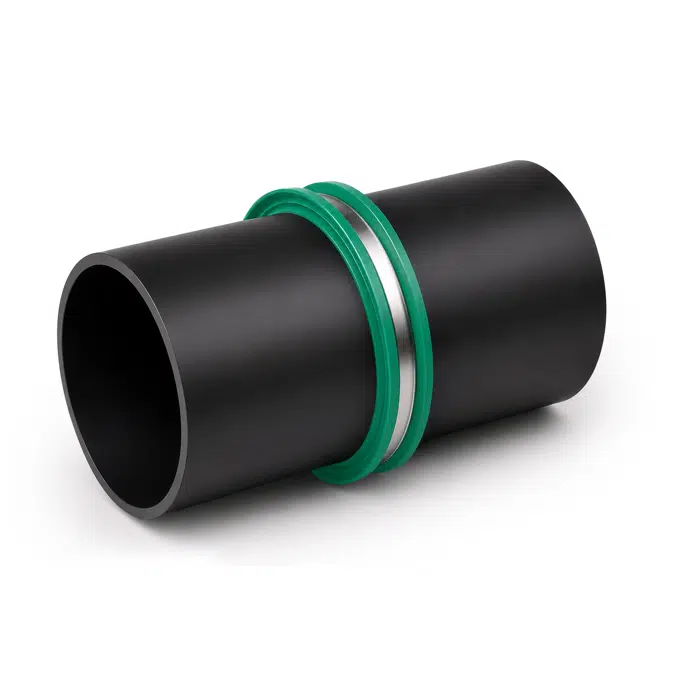

DURO Plus are high pressure-resistant lining pipes for secure and permanent routing of pipes and cables in buildings. A collar which can withstand water pressures of up to 7 bar is ﬁtted to the lining pipes at the factory.

available in Revit 2023-2027 and as IFC

Specification

material:
pipe: PVC | water barrier: TPE
available inner diameters:
50-300 mm
available lengths:
200-1200 mm
versions (Ø inner diameter / length):
Please find the specific article numbers and lengths in the attached Revit Family Type Catalog in the download area.

Please choose your installation situation, besides that both Revit models are similar:
- DURO PLUS floor plate

  Revit model No. 1
  - Art.-No. 090010 - 090043: Ø 50 mm / 200 - 1200 mm
  - Art.-No. 090050 - 090083: Ø 80 mm / 200 - 1200 mm
  - Art.-No. 090110 - 090143: Ø 100 mm / 200 - 1200 mm
  - Art.-No. 090150 - 090183: Ø 125 mm / 200 - 1200 mm
  - Art.-No. 090210 - 090243: Ø 150 mm / 200 - 1200 mm
  - Art.-No. 090250 - 090283: Ø 200 mm / 200 - 1200 mm
  - Art.-No. 090310 - 090343: Ø 250 mm / 200 - 1200 mm
  - Art.-No. 090350 - 090383: Ø 300 mm / 200 - 1200 mm

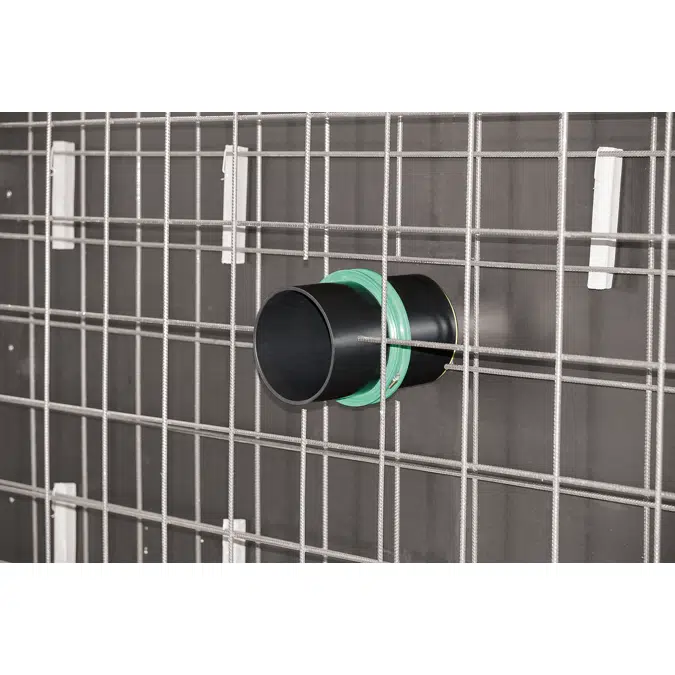

- DURO PLUS wall

  Revit model No. 2
  - Art.-No. 090010 - 090043: Ø 50 mm / 200 - 1200 mm
  - Art.-No. 090050 - 090083: Ø 80 mm / 200 - 1200 mm
  - Art.-No. 090110 - 090143: Ø 100 mm / 200 - 1200 mm
  - Art.-No. 090150 - 090183: Ø 125 mm / 200 - 1200 mm
  - Art.-No. 090210 - 090243: Ø 150 mm / 200 - 1200 mm
  - Art.-No. 090250 - 090283: Ø 200 mm / 200 - 1200 mm
  - Art.-No. 090310 - 090343: Ø 250 mm / 200 - 1200 mm
  - Art.-No. 090350 - 090383: Ø 300 mm / 200 - 1200 mm
