Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

Connector | Connection Seal for Corrugated Pipes

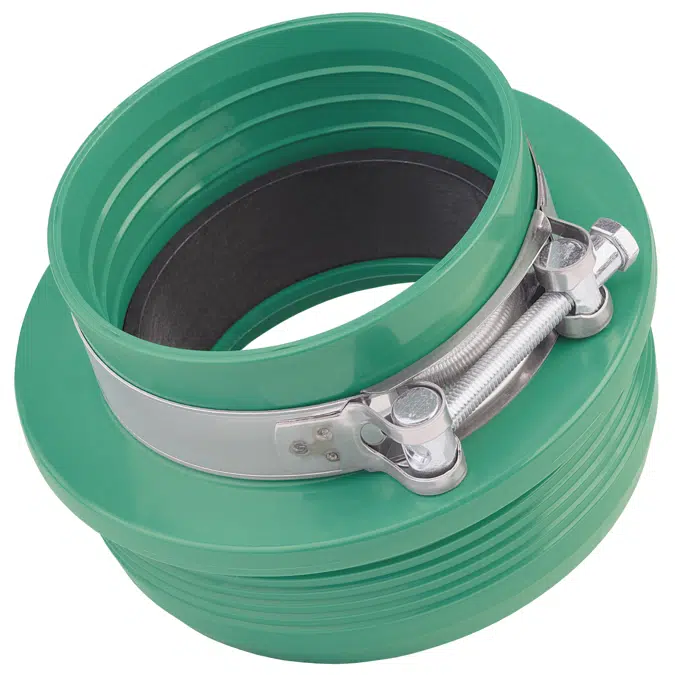

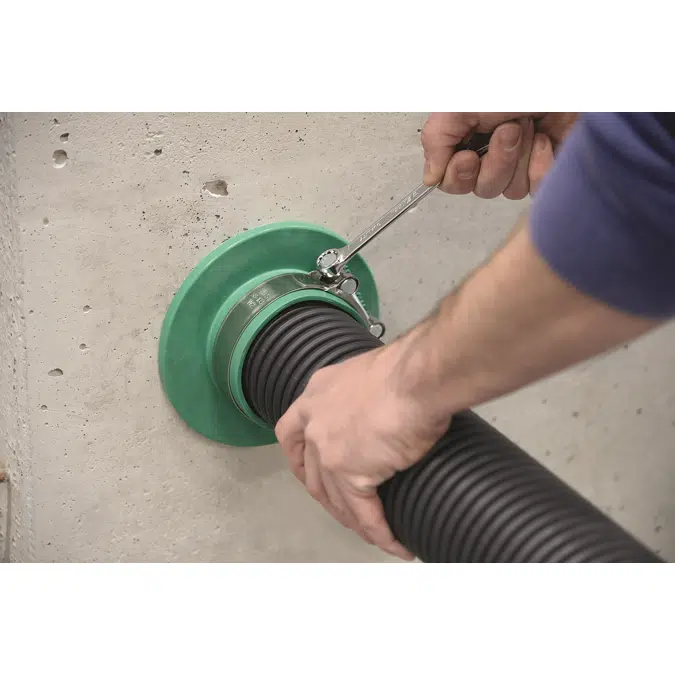

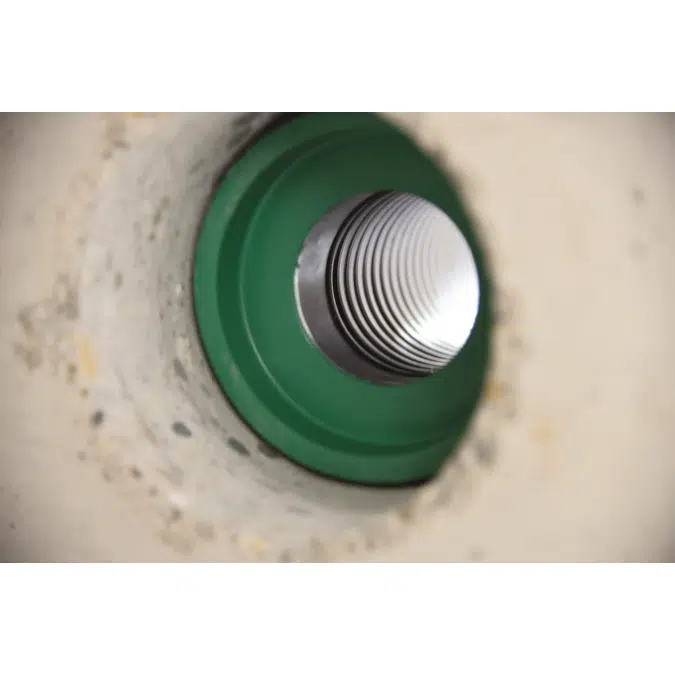

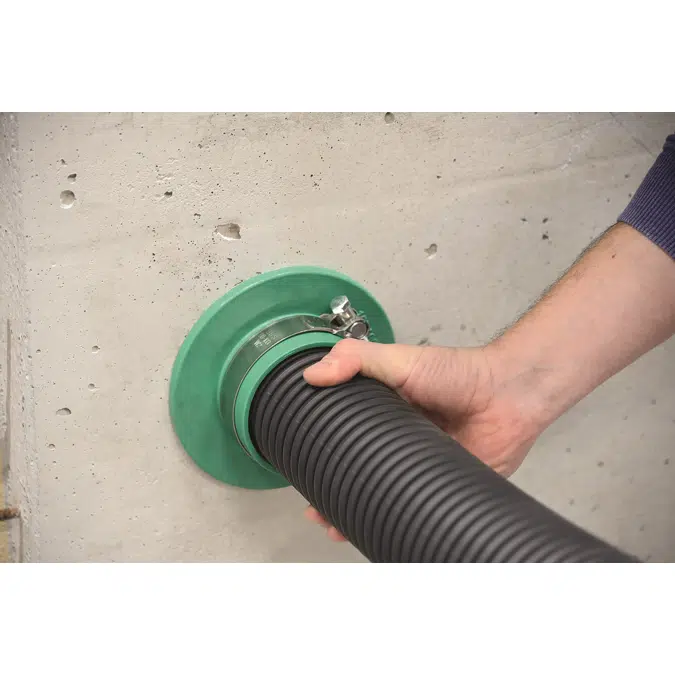

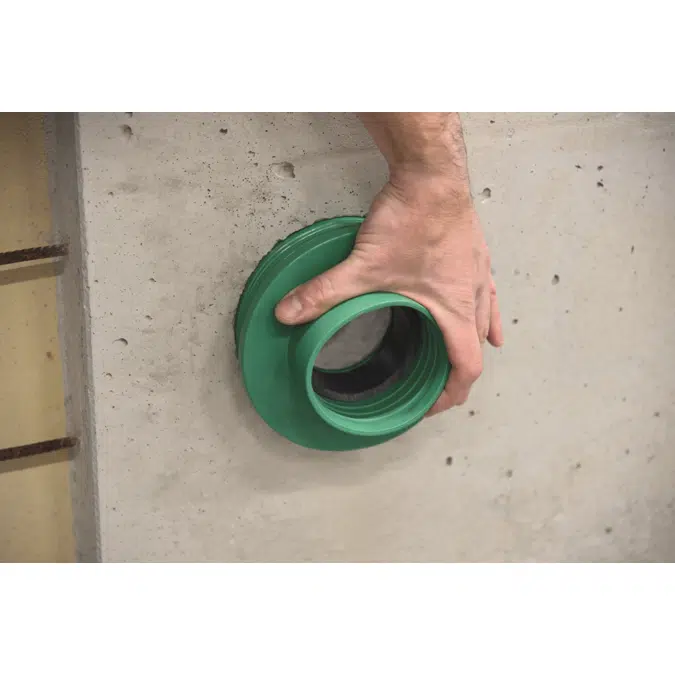

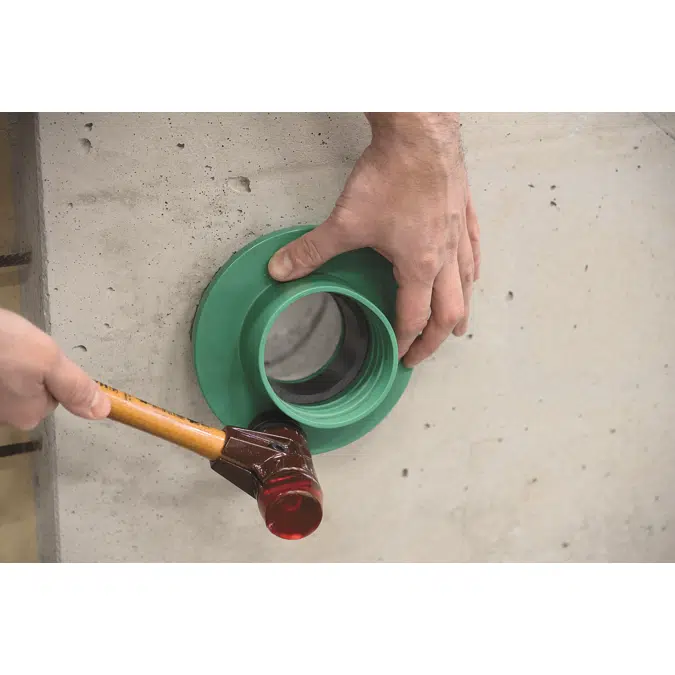

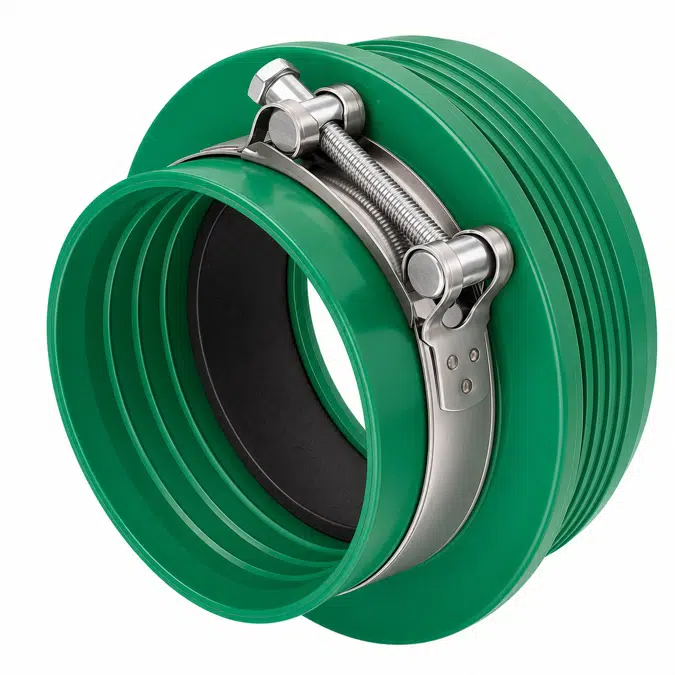

Seal for professional connection of corrugated-pipes to core drillings, wall sleeves and lining pipes.

available in Revit 2022-2027 and as IFC

Specification

material:
Connector: TPE Mixture | clamp: W4 - V2A stainless steel
area of application:
for corrugated pipes Ø 75-110 mm
versions (Ø wall sleeve / Ø corrugated pipe):
- Art.-No. 090850: Ø 100 mm / Ø 75 mm
- Art.-No. 090852: Ø 150 mm / Ø 90 mm
- Art.-No. 090854: Ø 150 mm / Ø 110 mm

Technical specification

Unique ref.connector-wellrohr
Date of publishing2025-11-20
Edition number1

Links

Product urlhttps://www.mastertec.eu/en/products/pressure-water-tight-service-ducts/wall-sleeves/connector-connectionseal
Installation instructionshttps://www.mastertec.eu/en/p/pdf/00090854/buildingmanual
Tendering informationhttps://ausschreiben.de/catalog/mastertec/catalogItem/85736ec2-757d-42ff-9823-35dd77f42bbd

Classification

BIMobject CategoryBuilding Materials - Waterproofing & Membranes
