KG 2000 Sewage Ground Drain | Novo | FFL

KG 2000 Sewage Ground Drain | Novo | FFL

KG 2000 Sewage Ground Drain | Novo | FFL

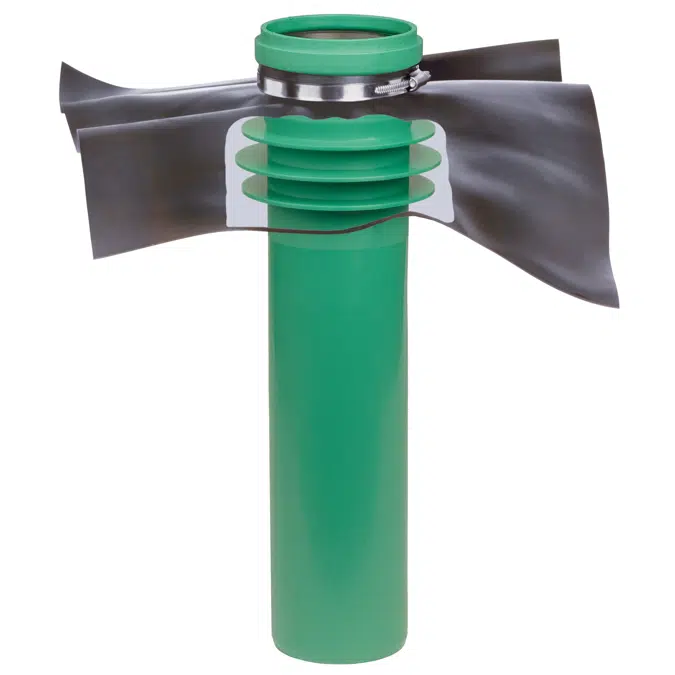

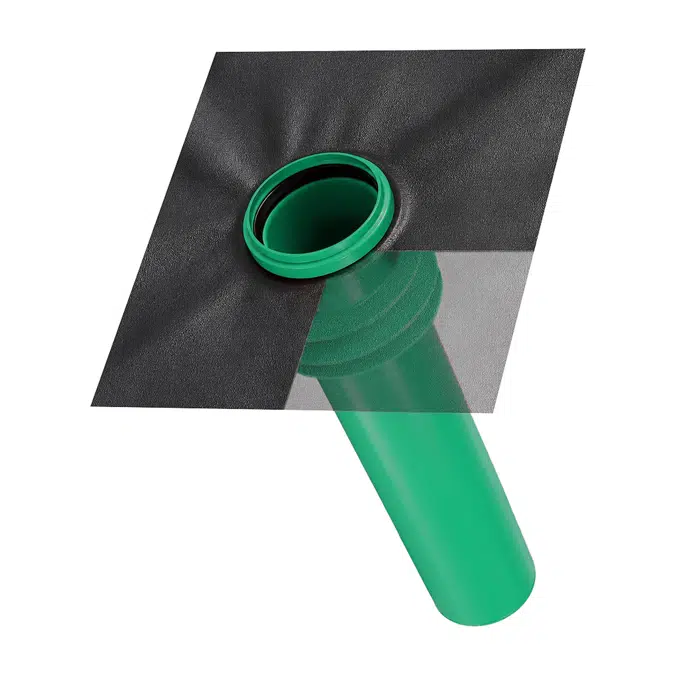

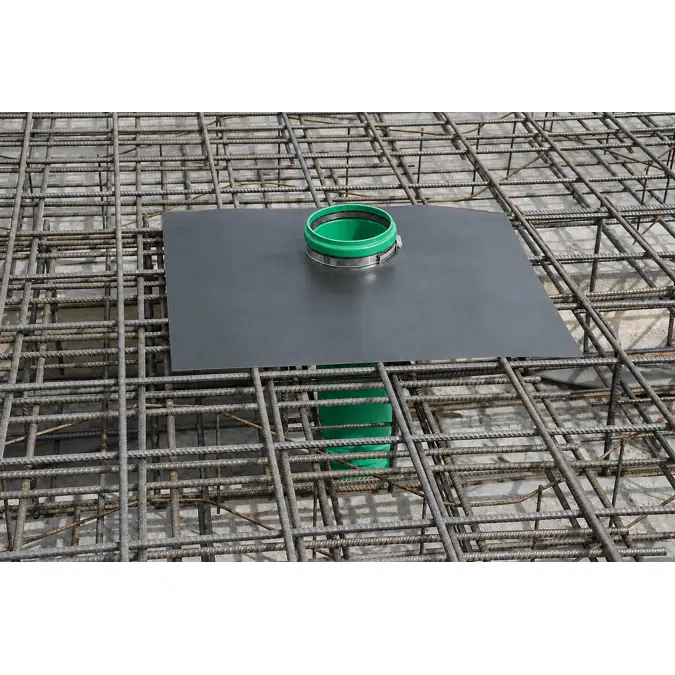

KG 2000 sewage ground drains – solid wall pipes with waterstop “Novo”, foil flange and socket on one end

available in Revit 2022-2027 and as IFC

Specification

material:
corpus: PVC solid wall | sealing: TPE
available inner diameters:
110 mm & 125 mm
length:
500 mm
versions (Ø sewage pipe / length):
- Art.-No. 080992: Ø 110 mm / 500 mm without plug
- Art.-No. 080992D: Ø 110 mm / 500 mm with plug
- Art.-No. 080994: Ø 125 mm / 500 mm without plug
- Art.-No. 080994D: Ø 125 mm / 500 mm with plug

Technical specification

Unique ref.bdl-novo-kg-2000-ffl
Date of publishing2025-11-20
Edition number1

Links

Classification

BIMobject CategoryConstruction - Penetration systems
