AutoCAV Commercial

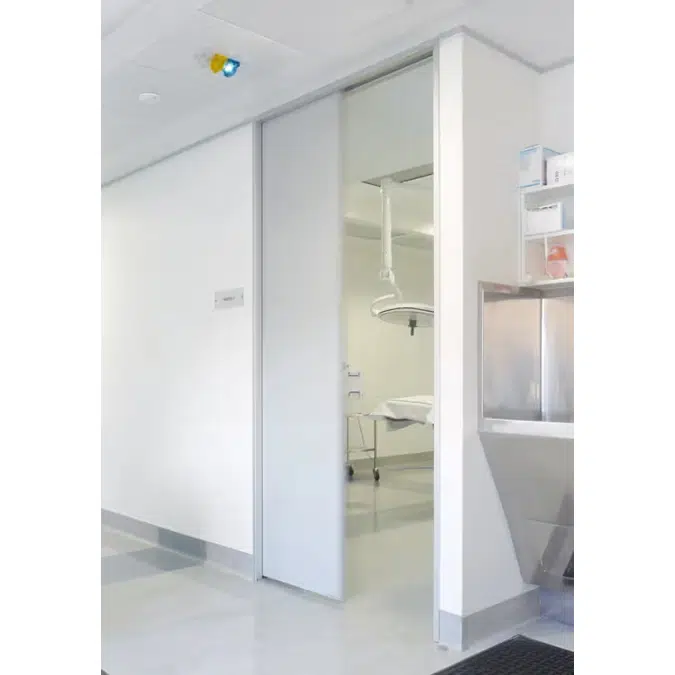

The CS AutoCav® Commercial is a fully automated pocket system designed for a range of applications, from commercial and architectural environments to healthcare facilities.

Built with high-quality components, CS AutoCav Commercial guarantees reliability and durability. Easy access to the track via the maintenance panel simplifies servicing, ensuring a dependable, long-lasting system.

Specification

Dimensions
Max Size: Custom sizes up to 168" x 60" (4270mm W x 1524mm H) per door
Max Weight: 440lb (200kg) per door
Wall Framing: 3½" or 3⅝" (90mm) or 5½" (140mm)
Suitable Door Types
Can be specified with almost any choice of door that meets a minimum door width of 34” (860mm) and a maximum door width of 60” (1524mm).
Design & Safety Features
Fully Programmable controller with many standard operating modes.
Safety features include a built-in safety beam controller, electronic obstacle detection, and auto reversing of the door upon meeting an obstruction.
Configurations
Available in Single and Bi-Parting (Double Door) Configurations
Access Control Options
A variety of access control options are available, including:
- Push buttons
- Overhead sensors
- Touchpads
- Swipe keys
- Custom combination of these methods for secure entry

Technical specification

Unique ref.autocav-commercial
Product familyCaviSlider™
Product groupAutomatic Pocket Doors
TypeObject (single object)
Date of publishing2025-05-12
Edition number1

Links

Product urlhttps://www.cavitysliders.com/cavislider/automatic-pocket-doors/autocav-commercial/
Technical descriptionhttps://cdn.sanity.io/files/jh7ovnqs/production/0ddadb61c3a5836ac4922098aa18bb79739964ff.pdf

Classification

BIMobject CategoryDoors - Sliding
IFC classificationDoor
Uniclass 2015 CodeAc_15_50_25
Uniclass 2015 DescriptionDoors, windows and glazing surveying
CSI MasterFormat 2014 Code08 10 00
CSI MasterFormat 2014 TitleDoors and Frames
OmniClass Number23-17 11 00
OmniClass TitleDoors
