CS BarnDoorTrack
Cavity Sliders

CS BarnDoorTrack

4.4 out of 5 stars4.4(8 reviews)

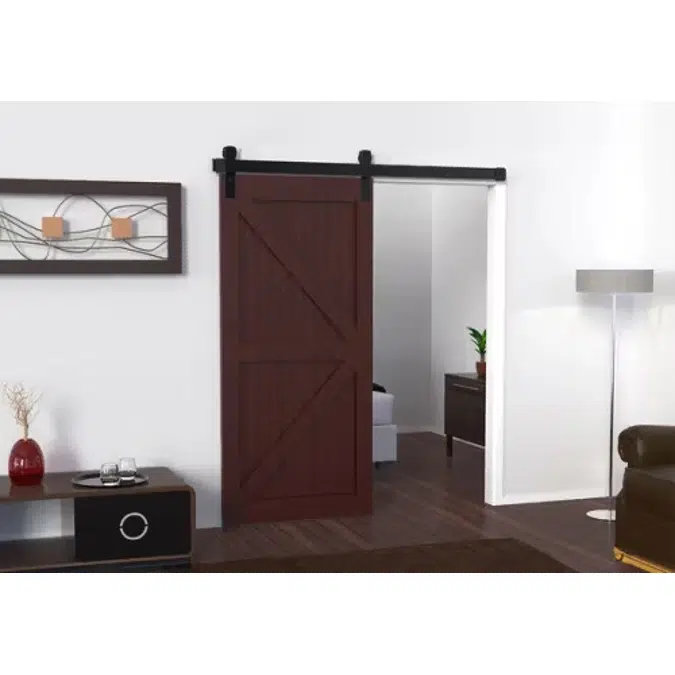

The CS BarnDoorTrack offers the ideal solution for achieving a classic barn door aesthetic.

Ideal for adding a touch of elegance to your modern farmhouse, this track combines functionality with style, ensuring smooth operation and a polished look.

For quick and easy installation, the track features pre-machined fixing slots. The track is pre-finished black anodized and supplied complete with fixing bracket, stops, door hangers and T-Guide.

The CS BarnDoorTrack can also be upgraded with the SofStop® soft-close feature, making it ideal for quiet environments like bedrooms, offices, and patient rooms.

Specification

  • Features

    • The track is high-quality, heavy-duty extruded aluminum.
    • Track can be easily adjusted to allow for different wall clearances with baseboard & moulding.
    • No exposed fasteners provide a clean look.
    • Ultra smooth running acetal wheels.
    • Pre-machined mounting holes. Additional holes can be drilled on-site to match studs.
    • Anti-jump system ensures wheels cannot jump off the track.
    • Available with SofStop® 264lb soft close/soft open kit (suitable for retrofit). The minimum recommended door width is 32"

    Technical Details

    Track Finish: Black Anodized

    Maximum Weight Per Track: 650 lb (300kg)

    Maximum Door Weight: 400 lb* (180kg) (*Doors over 400 lb require extra hangers or a customized solution), 264 lb with SofStop

    Minimum Door Thickness: 1-1/4" (32mm)

    Track Lengths: 6', 7', 8', 9', 10', 13', 14', 15', 16', 17', 18' and 19’ pre-cut lengths

Technical specification
  • Unique ref.cs-barndoortrack
  • Product familyCaviTrack
  • Product groupBarn Door Tracks
  • Date of publishing2025-05-12
  • Edition number1
Links
Classification
  • BIMobject CategoryDoors - Sliding
  • IFC classificationDoor
